PVC GLAZING BEAD SAWING MACHINE – MOD. GS 225
- Brand: STB
- Year: 2002
- Revision and Testing: Operating
- Warranty: No
- Graf Synergy On consignment

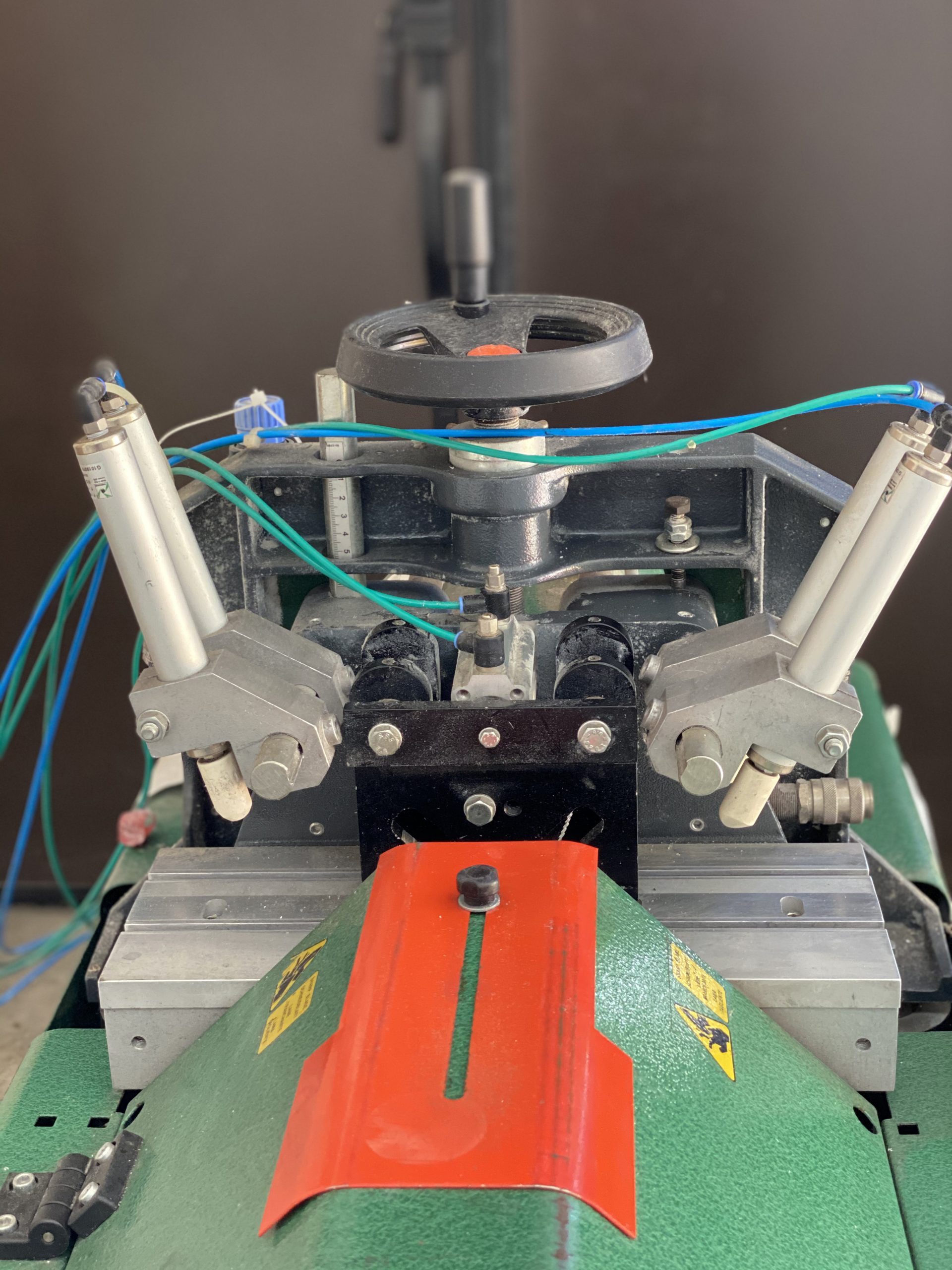

- Description: Pvc Glazing Bead Sawing Machine – Mod. GS 225 A
Movable cutting carriage with 45° fixed tilting blades and workpiece vertical stop setting
Manual carriage feed for Model GS 225M and pneumatic carriage feed for Model GS 225A
Product Details
Manual height adjustment by means of handwheel and size reading through metric scale
No. 2 HSS blade Ø 103 mm
No. 2 HSS blade Ø 225 mm adjacent the Ø 103 mm blades
Air‑gun with hose
Dimensions
Length: 1.200 mm
Width: 700 mm
Height: 1.300 mm
Weight: 180 Kg
power supply and consumption
Supply: 400 V
Installed power: 1.2 Kw
Air consumption per cycle: 60 Nl/min.
Blade Dimensions: –
