ST1 A
Automatic Corner Milling Machine for Door Frame Exchange
Precise and repetitive automation for corner finishing after welding
Perfect if…
- You need to refine the internal corners of the welded doors without relying on skilled operators.
- Are you looking for an automated solution to enhance accuracy?
- Do you want to minimise manual rework?
- We produce medium to large batches of fixtures and strive for consistent quality.
- Do you already have an SL4-FF Evo welder and want to enhance its efficiency?
- Do you have limited space for a dedicated station for
Request the technical brochure now or speak with an expert.
Precise and repetitive automation for corner finishing of post-welding doors
Designed to automate the milling of internal corners resulting from the welding of three frame profiles with a reduced frame profile, ST1 A is the ideal milling machine for those looking to eliminate manual processes, increase precision, and seamlessly integrate into a production line.

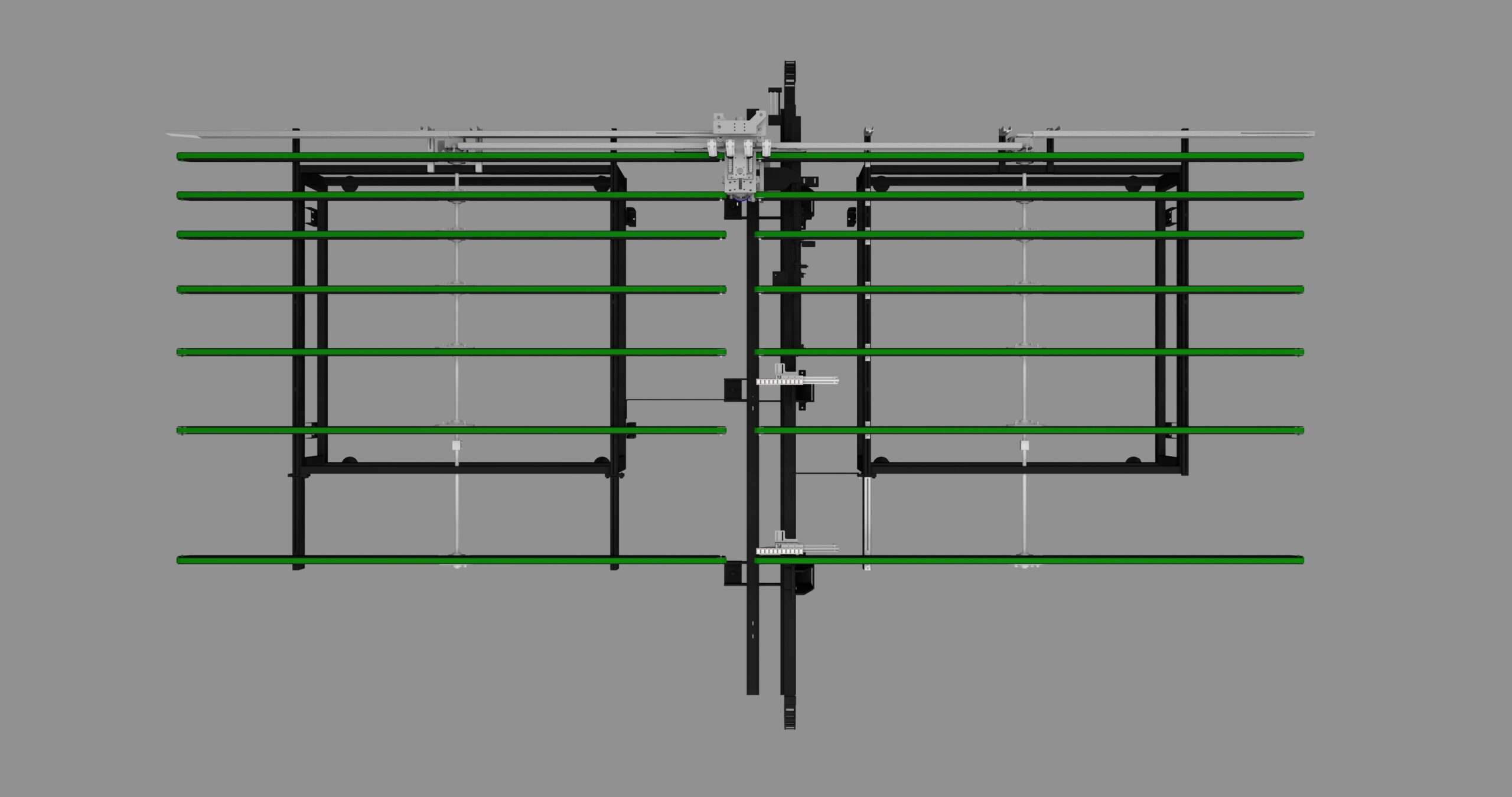

Equipped with a double-length automatic bench featuring a high-speed central milling unit, this machine ensures perfectly centred and consistent machining, thanks to the automatic measurement of the reference plane.
Compatible with the SL4-FF Evo welder, it can replace the cooling table, simplifying line management. The integrated control allows the milling machine to be operated directly from the welder’s control panel.
5 reasons to choose ST1 A
- Complete Automation of Corner Milling. Fully automated management of gripping, centring, and milling of the two corners in sequence, with no need for manual intervention.
- High repetitive precision. Thanks to the automatic measurement of the reference plane, each milling is calibrated to the millimetre on every type of profile.
- Smart integration with the SL4-FF Evo welder. Direct control from the welder’s panel and the option to replace its cooling table.
- Sturdy structure and optimised footprint. Spacious 8×4.5 metre workbench with scratch-resistant transport, perfect for delicate profiles.
- Ideal for high-volume production. One operator, continuous operation, reliability, and reduced rework: perfect for intensive lines.
Product Details
The ST1 A is designed to automatically and precisely carry out the milling of excess material that forms in the two internal corners of the welded panels.
Dimensions
Length: 8,000 mm
Width: 4,500 mm
Height: 1,800 mm
Weight: 1.200 Kg
Performance
Operation: automatic cycle manual
Operators required: 1
Maximum work area: 3,200 x 3,200 mm
Minimum workable frame: 400 x 400 mm
power supply and Consumption
Installed power: 2.5 kW
Power Supply Voltage: 400 V
Operating pressure: 6-8 bar
Air consumption: 10 Nl/min
Workable profiles
Compatible with welded PVC door profiles.
Specifications for milling corners with reduced post-welding flap.
Supported features and processes
Thanks to pneumatic jaws, a scratch-resistant transport system, and a high-speed central milling unit, it ensures consistent and repeatable processing across all batches.
Supported processes:
- Milling of internal corners after welding
- Automatic centring of the workpiece
- Automatic measurement and compensation of the plane
Optional and configurations
The ST1 A is provided in a standard version without any optional features, but the range includes a ST2 A version, which can be equipped with two milling heads for even higher productivity.
This advanced configuration is recommended for high turnover lines or for those looking to further reduce the operational cycle per window.
Technology and automation
The control system of the ST1 A is designed to integrate with Industry 4.0 systems, enabling remote control and interfacing with the SL4-FF Evo welder.
The management software allows for:
- Remote activation and monitoring via SL4 panel
- Automatic calibration of milling coordinates
- Compatibility with industrial interconnection protocols
