SL2-2
Double-head welder for 90° corners
Compact, precise, and robust: the solution for the simultaneous welding of two corners with calibrated fillet welds
Perfect if…
- Do you want to weld two corners simultaneously in a single operation?
- You work with profiles of various finishes and colours and wish to maintain a consistent edge.
- You need a stable and precise machine, suitable for intensive production.
- Are you looking for an easy-to-use system with precise temperature control?
- Do you want to set up your system for Industry 4.0?
Request the technical brochure now or speak with an expert.
Compact, precise, and robust: the solution for the simultaneous welding of two corners with a calibrated bead.

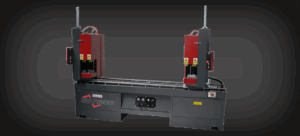

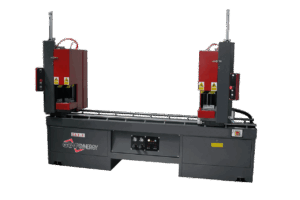

The SL2-2 is a fixed-angle double-head welder, designed to create two 90° joints in a single automatic cycle.
The base made of cast iron and the enlarged support base provide maximum stability and long-lasting durability, even in the most demanding production environments.
Equipped with a reliable electronic thermal control system and adjustable limit knives ranging from 0.2 to 2 mm, it ensures perfect welds on white, laminated, and coloured profiles.
The contour change is quick and secure, while the user-friendly interface makes it easy to use even for less experienced operators.
5 reasons to choose SL2-2
- Guaranteed 0.2 mm calibrated edge. Steel limiting knives, adjustable from 0.2 to 2 mm for clean welds on any finish.
- Quick Change Counter-Profile. Fast and precise attachment/detachment system for flexible format management.
- Precise electronic control. Fully automated management of plate and knife temperatures.
- Simplified Interface. Intuitive control and automatic welding cycle: the operator works efficiently and safely.
- Extremely sturdy structure. Cast iron base and reinforced tabletop: uncompromising stability.
Product Details
The SL2-2 welder allows for:

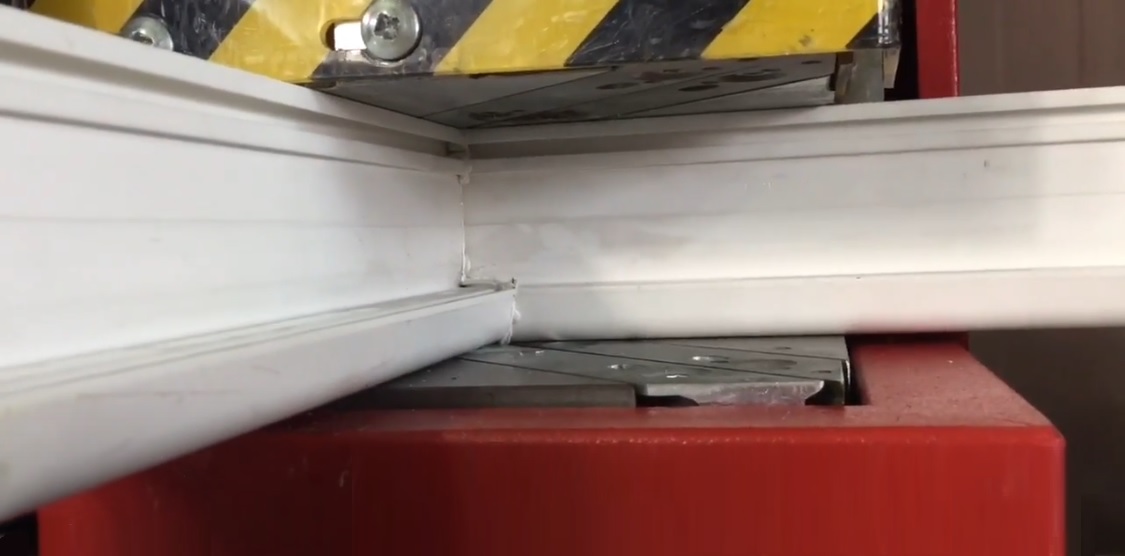

- Welding 90° corners in a single cycle
- Welding of C-shaped elements
The electronic system ensures consistency in joint quality, regardless of the type of profile being processed.
Machine dimensions
Length: 3,950 mm
Width: 800 mm
Height: 2,100 mm
Weight: 850 kg
Performance
Operational: manual
Operators required: 1
Maximum weldable frame size: 320 x 2,450 mm
power supply and Consumption
Installed power: 5.7 kW
Voltage: 400 V
Minimum pressure: 7 bar
Air consumption per cycle: 90 Nl/min
Workable profiles
Height: 40 to 200 mm
Width: 40 to 130 mm
Optional features and available configurations
The SL2-2 can be customised with a range of options to enhance precision, ergonomics, and process control:
- Additional support for profile holder arm (1 per head)
- Heated knives
- Right head extension (L = 270 mm)
- Internal sealing press
- Extended base (up to 3,450 mm between the heads)
- Display with integrated Best Weld System
Best Weld System: advanced monitoring of the welding cycle and anomaly detection.
Technology and automation
The SL2-2 integrates:
- Electronic temperature control for plates and knives
- Fully automated welding cycle system
- Simplified user interface
- Best Weld System (optional) for quality control and traceability
Preparation for Industry 4.0.
