SE 1
Pneumatic screwdriver for reinforcement on PVC and aluminium profiles
Maximum reliability and precision for manual fastening of reinforcements
Perfect if…
- You need to quickly and accurately screw reinforcements onto profiles of varying sizes.
- Are you looking for a compact, reliable car that is easy to use even in small production environments?
- Do you work in environments without electrical installations and are looking for a fully pneumatic solution?
- Are you looking for a sturdy tool with a welded sheet metal structure and roller support?
- Do you want to simplify operations with a single operator and foot-activated screwing?
- You need to maintain a consistent quality, thanks to the self-regulating depth of the screw.
Request the technical brochure now or speak with an expert.
Maximum reliability and precision for manual fastening of reinforcements
The SE 1 screwdriver is the compact and robust solution for the manual assembly of reinforcements in PVC and aluminium profiles.
The fully pneumatic vertical structure ensures stability, ease of use, and perfect repeatability of the screwing process without the need for electrical connections.

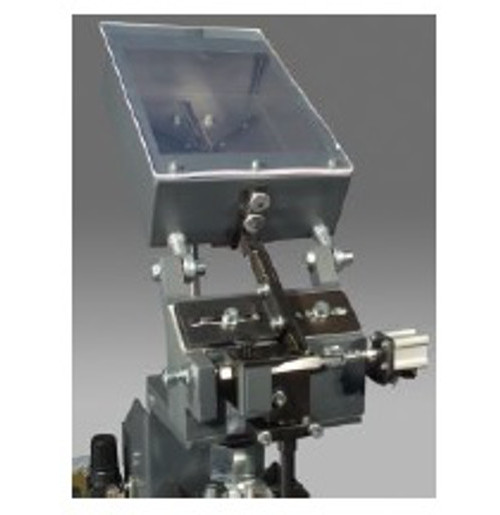

The automatic screw feeding system and pedal control free the operator from repetitive actions, enhancing comfort and productivity.
The presence of the limit switch sensor allows for automatic adjustment of the screw insertion depth, regardless of the profile height, ensuring precise and consistent tightening under all conditions.
5 reasons to choose SE 1
- Robust and compact structure. Built from electro-welded sheet metal with an integrated roller system, ideal for smaller production spaces.
- Zero electrical power. Fully pneumatic, perfect for workshops without onboard electrical supply.
- Self-regulating screw insertion. Thanks to the limit switch sensor, the screw depth adjusts to the height of the profile.
- Operator Comfort. Foot activation and horizontally locked profile with pneumatic device.
- Reliability of GRAF Synergy. Designed to last over time, with consistent performance even under heavy use.
Product Details
The SE 1 model is designed to facilitate the screwing of metal reinforcements into PVC and aluminium profiles. The entire process is manual, but it has been optimised with solutions that enhance precision and reduce operational fatigue.
Dimensions
Length: 1,200 mm
Width: 800 mm
Height: 2,000 mm
Weight: 115 kg
Performance
Operations: manual
Operators required: 1
Productivity: dependent on the operator and the bar used
power supply and Consumption
Installed power: 0.5 kW
Power Supply: 400 V
Air consumption per cycle: 540 Nl/min
Minimum operating pressure: 7 bar
Workable profiles
Width: 40-120 mm
Height: 40-180 mm
Length: variable depending on the bar
Supported features and processes
The machine is suitable for flexible production environments, where a reliable, simple, and independent system from the electrical grid is required.
Main processes:
- Screwing metal reinforcements into profiles
Automatic horizontal clamping of the workpiece
Optional features and available configurations
The SE 1 model comes in a standard configuration, already equipped with a ground support, side rollers, and a profile locking system.
No additional options are available, as this machine is designed for maximum simplicity and operational robustness.
Technology and automation
The SE 1 does not require electrical power or control software, simplifying installation and maintenance. Management is entirely pneumatic, using mechanical sensors to optimise screw depth. It is the perfect choice for those looking to integrate a manual yet optimised phase into their production process without compromising on quality.
