RP E S9
Roller conveyor with electronic positioning for precise profile cutting
The smart reference for every manual cut
Perfect if…
- You work with profiles that need to be cut using manual saws, requiring greater precision.
- Do you want to reduce human errors in measuring lengths?
- You need to integrate cutting lists from management software or external files.
- Are you looking for a solution compatible with barcode and wireless scales?
- Do you want to automate positioning while maintaining flexibility of use?
- You have limited space but high efficiency demands.
Request the technical brochure now or speak with an expert.
The smart reference for every manual cut
The RP E S9 roller conveyor is the ideal solution for optimising cutting operations on manual saws.
Thanks to its integrated electronic positioning system, it allows for consistently accurate and repeatable measurements, eliminating manual errors and speeding up the setup phase.
Perfect for those working with glass stops and PVC or aluminium profiles, it is available in various lengths up to 6,600 mm and is designed to support and guide the pieces being cut with horizontal and vertical PVC rollers, ensuring smoothness and stability.
5 reasons to choose RP E S9
- High-Precision Electronic Positioning. Direct measurement input from the keyboard, barcode reading, lists from USB/network, or reception from a wireless gauge.
- Smart mobile blade. It automatically retracts after each cut to facilitate piece removal and speed up the operator.
- Operational and dimensional versatility. Available in 4 lengths (from 3,600 to 6,600 mm), it supports up to 18 kg/m and can be installed on either side of the mitre saw.
- Up to 495 programmable corrections. Advanced profile management with 99 presets, dynamic corrections, and customisable options based on the type of cut.
- Ready for digital integration. Compatible with radio frequency gauges, barcode readers, and LAN networks for full Industry 4.0 connectivity.
Product Details
The RP E S9 is designed to provide an accurate reference during cutting, reducing setup times and minimising waste. The electronic system allows for the storage of up to 99 different profiles, each of which can include specific corrections for horizontal or vertical machining.
Available sizes
Model 3: 3,600 x 800 x 1,400 mm – Weight 140 kg
Model 4: 4,600 x 800 x 1,400 mm – Weight 150 kg
Model 5: 5,600 x 800 x 1,400 mm – Weight 160 kg
Model 6: 6,600 x 800 x 1,400 mm – Weight 170 kg
Performance
Load capacity: 18 kg per linear metre
Operation: 1 operator
power supply and Consumption
Installed power: 0.5 kW
Power supply: 230 V single-phase
Supported features and processes

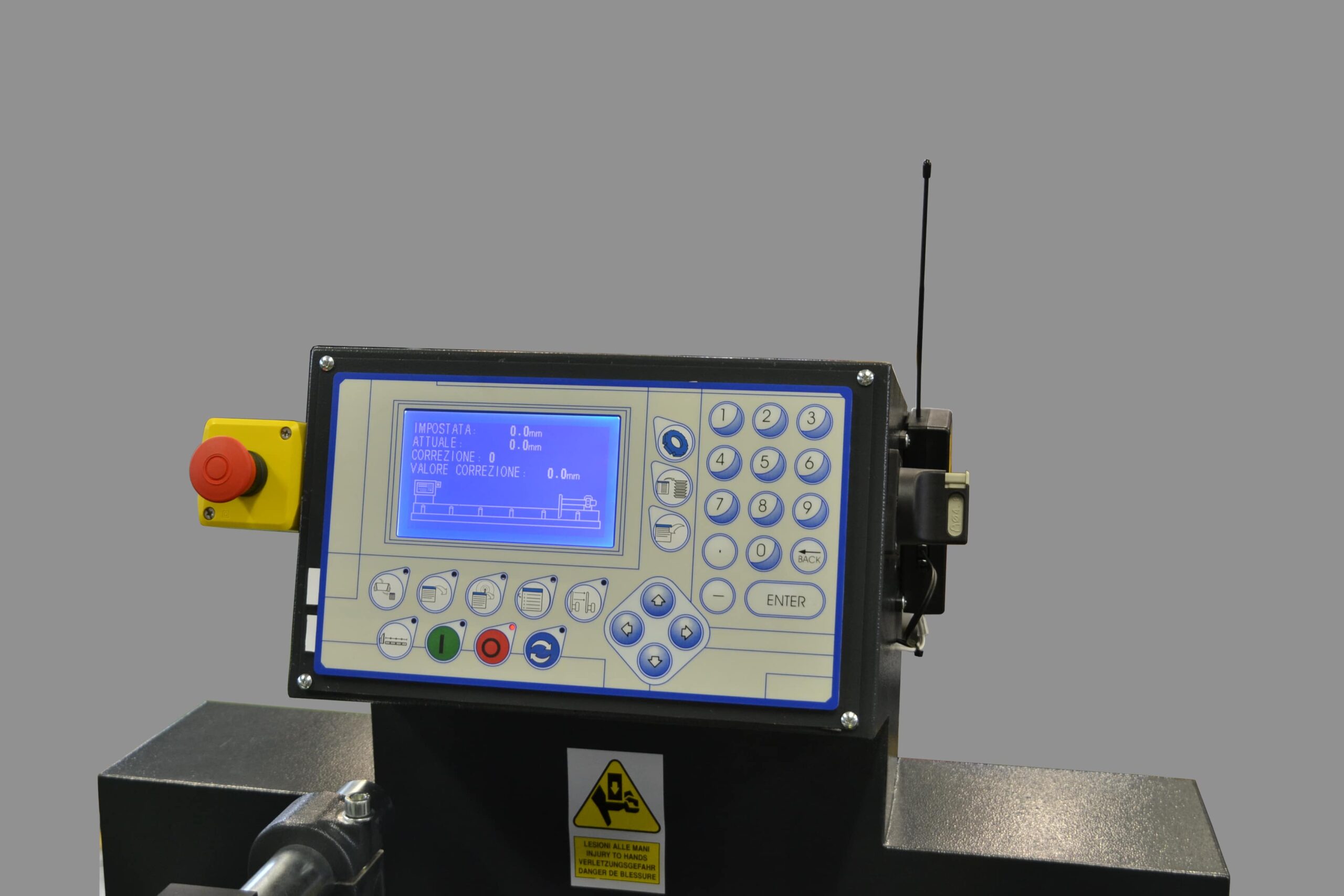

Each cut is supported by a motorised mobile blade that automatically repositions itself, ensuring sustained speeds and a continuous operational flow. The 6-inch graphical interface allows for immediate and intuitive control of all settings.
Optional and configurations
To enhance the capabilities of the RP E S9 roller conveyor, various optional features are available:
- MSK 25 / G233 Kit for radio transmission of gauge readings
- Wireless CCD barcode reader for automatic profile identification
- 10/100 Mb network card for connection to the business management system
- Electrical connection to manual saws for complete automation of cutting lists.
Technology and automation
The control system of the RP E S9 is designed to provide intuitive and scalable automation. In addition to storing and managing customised profiles, it supports:
- Dynamic corrections based on profile length and type of stroke (up to 495 combinations)
- Receiving quotes via wireless calibration or barcode
- Graphical user interface with visual messages and real-time displayed quota
- Selectable operation between absolute or percentage mode.
Do you want to improve the accuracy of your cutting department?
Download the complete brochure or contact us for a personalised consultation on the RP E S9: discover how to integrate it into your production flow and immediately enhance efficiency and processing quality.
