RP BM
Support roller for cutting PVC and aluminium profiles
Stable reference and smooth sliding for every cut
Perfect if…
- Use manual cutters for cutting glazing beads or profiles.
- You need a stable and adjustable support system.
- You work with PVC or aluminium profiles of various lengths.
- Are you looking for a sturdy, durable roller conveyor that is easy to integrate?
- Do you want to ensure accuracy in measurement and ease of material handling?
- Do you have limited space and are looking for a modular support available in various sizes?
Request the technical brochure now or speak with an expert.
Stable reference and easy glide for every cut

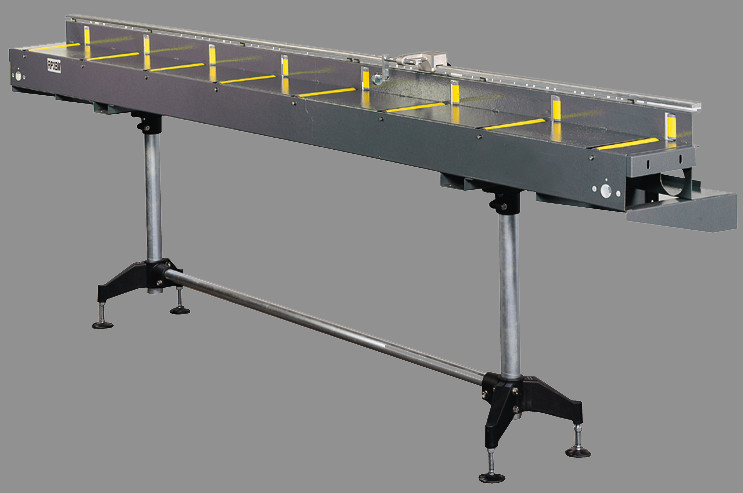

The RP BM roller conveyor from GRAF Synergy is the ideal solution for supporting and aligning profiles during cutting, particularly when using manual mitre saws for glass stops or profiles.
Designed to ensure maximum stability and ease of use, it guarantees a smooth and precise workflow in the handling of cut pieces.
Why choose RP BM?
- Sturdy and Durable Structure. Electro-welded steel frame with adjustable and drillable feet for maximum stability, even in industrial environments.
- Optimal Profile Sliding. Horizontal and vertical PVC rollers to facilitate the movement of cut pieces, reducing effort and the risk of damage.
- Maximum reference accuracy. Manual sliding stop with guide and graduated scale for the precise positioning of workpieces.
- Adaptable to all production needs. Available in 4 lengths (3.6 / 4.6 / 5.6 / 6.6 m), with a load capacity of 18 kg per linear metre and suitable for bilateral use.
- Compatible with GRAF Synergy cutting machines. Available upon request with brackets for direct connection to the most common glass cutting machines in the Graf range.
Product Details
The RP BM roller conveyor from GRAF Synergy is the ideal solution for supporting and guiding profiles during cutting, especially when using manual mitre saws for glass stops or profiles.
Available sizes
Model 3: 3,600 x 500 x 1,200 mm – 120 kg
Model 4: 4,600 x 500 x 1,200 mm – 130 kg
Model 5: 5,600 x 500 x 1,200 mm – 140 kg
Model 6: 6,600 x 500 x 1,200 mm – 150 kg
load capacity
18 kg per linear metre
Usage
Discharge side, on both sides
Positioning
Manual on driving with a graduated scale
Structure
Electrowelded steel with adjustable feet
Rollers
Horizontal and vertical PVC profiles
Optional and configurations
The RP BM can be equipped, upon request, with accessories to enhance operational efficiency and integration into the production line. The optional brackets allow for direct anchoring to GRAF Synergy saws, ensuring stability and perfect alignment.
The RPV version is also available, featuring a movable jaw with a flyer for positioning and electronic measurement reading, making it ideal for those who require faster and more precise adjustments.
Request your custom configuration now
Contact us for a personalised consultation on the version that best suits your production needs.
Download the technical brochure or request a personalised quote: the GRAF Synergy team is ready to assist you in making your choice.
