LINEAR CUT 500
Compact high-efficiency CNC cutting centre
Automation, precision, and versatility to optimise every bar.
Perfect for:
- Production departments looking to automate the cutting cycle
- Window manufacturers seeking a precise and easy-to-operate machine
- Workshops aiming for high productivity in limited spaces
- Companies wanting to maximize the value of every bar with optimization software
- Those seeking a system with high resale value (Buy Back)
Request the technical brochure now or speak with an expert.
Smart cutting with complete autonomy
The Linear Cut 500 is a CNC cutting centre with 3 or 4 controlled axes (depending on the configuration), designed to perform all operations autonomously: loading, alignment, cutting, and unloading of PVC profiles.

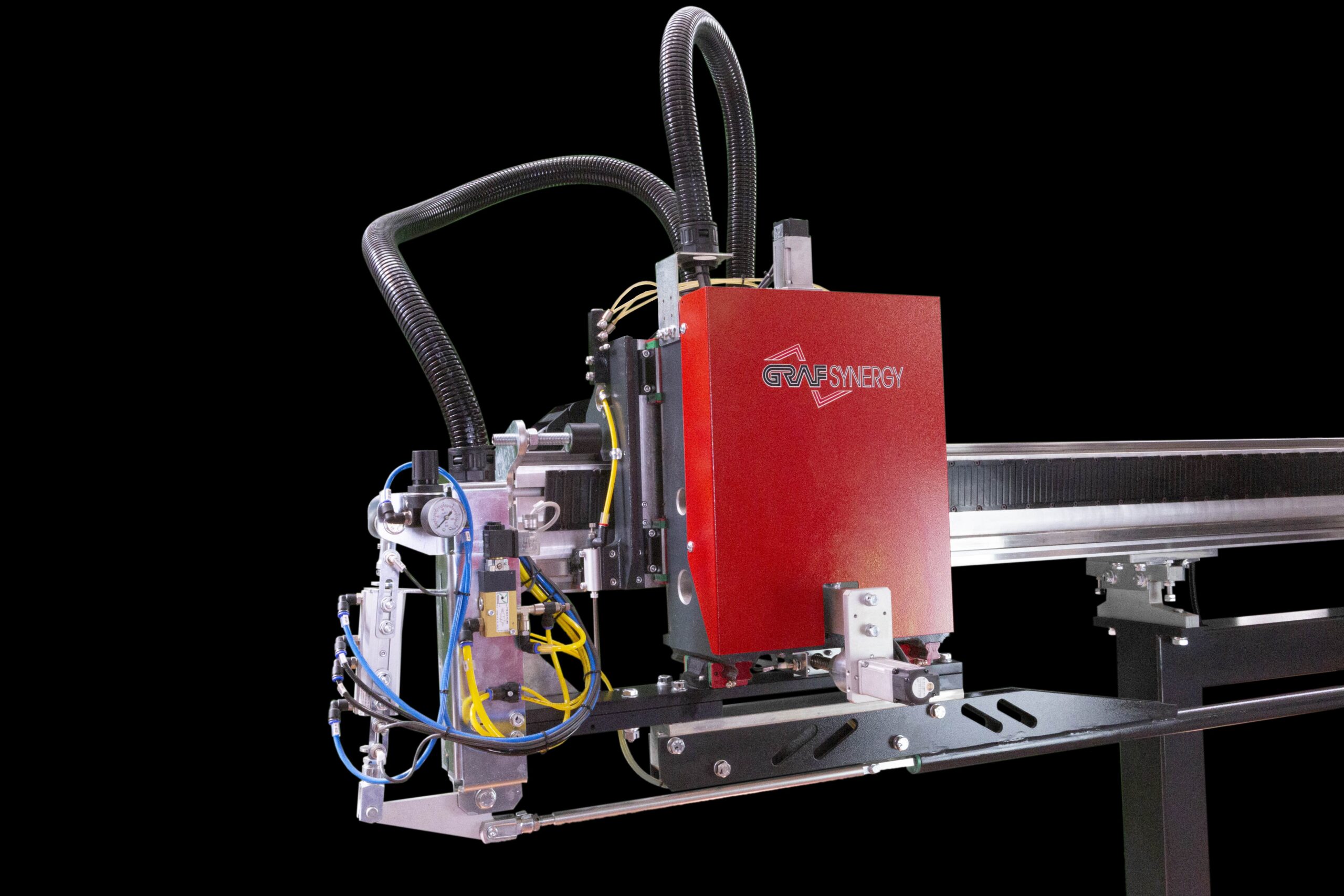

The system features an 8-bar loading warehouse, a 2-axis CNC clamp on linear guides, and a cutting module with an upward blade of Ø 500 mm, designed for clean cuts at -45°, 90°, and +45°.
The automatic extractor and the unloading warehouse ensure a continuous and safe flow.
Why choose the Linear Cut 500?
- Versatility and compactness. Adapts to different production layouts while delivering high performance in a limited space.
- Production optimization. GRAF Synergy software enables waste reduction and optimized management of cutting lists.
- Guaranteed long-term precision. Bar alignment system and hundredth-millimeter position reading via magnetic band.
- Simple and intuitive technology. User-friendly interface for clear and fast management of the production cycle.
- High resale value. Built with high-performance materials and technologies, maintaining its economic value over time.
Product Details
High-precision upward cutting of PVC profiles (including those with seals), with angles ranging from -45° to +45°.
The entire process is automated and can be integrated into smart factory systems.
Dimensions
Length: 15,000 mm
Width: 2,800 mm
Height: 2,000 mm
Weight: 2.200 kg
Performance
Up to 300 windows in 8 hours (1 panel)
Operators required: 1
power supply and Consumption
Installed power: 7 kW
Voltage: 400 V
Minimum pressure: 7 bar
Air consumption: 200 Nl/min
Workable profiles
Length: 700 to 6,500 mm (optional 400 mm)
Width: 40 to 130 mm
Height: 40 to 135 mm
Optional features and available configurations
The Linear Cut 500 can be configured to further enhance its productivity and adaptability:
- Fly Optimizer: automatic reuse of bar remnants
- Ø 550 mm blade with clamps for profiles up to 180 mm
- Brushless motor for intermediate angle cuts
- Manual labeling machine
- Sensors for profile height/width control
- Horizontal clamp system for sections up to 230 mm
- Chip conveyors NRT 500 / NRT-CP
- Two-bag dust extractor, 4 outlets Ø 100
- Extended or opposite-side unloading table
- Preparation for ASG-E
- V-Notch cutting unit
Integration 4.0 and advanced management
The software of the Linear Cut 500 allows for the import of lists, optimises cycles, and monitors the entire production process. Integrable with ERP and MES systems, it represents a strategic choice for companies focused on digitalisation.
Automate your cutting process and maximise your yield: request a consultation for the Linear Cut 500 today.
