GS 225 A
Compact single-head saw for PVC glazing beads
Simple, precise, reliable: the essential choice for quality cuts
Perfect for:
- Artisan workshops or small shops requiring high precision
- Those seeking an intuitive and safe solution for cutting glazing beads
- Facilities working on small batches or custom orders
- Productions that require flexibility in measurement systems
- Environments with limited workspace
Request the technical brochure now or speak with an expert
Double cutting on a compact and reliable structure
The GS 225 A is a single-head saw designed for the simultaneous cutting of two PVC glazing beads of the same length.
With pneumatic blade advancement and two-hand control, it ensures safety and ease of operation.

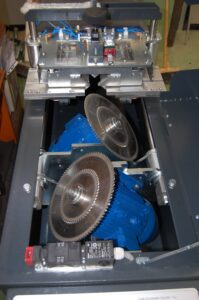

Equipped with a cutting set featuring 2 main Ø 225 mm blades and 2 secondary Ø 103 mm blades, it also performs precise trimming of the fixing foot.

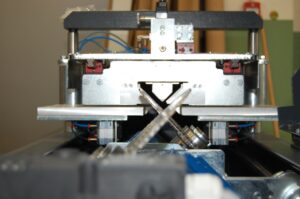

The cutting carriage is fixed at a 45° angle, and the machine is stabilized by universal counter-profiles and vertical pneumatic clamps.
5 reasons to choose the GS 225 A
- Compactness and simplicity. Lightweight structure (190 kg) and small dimensions, perfect for any production environment.
- Double cutting in a single cycle. Optimizes time by processing two glazing beads at once with perfect synchronization.
- Consistent precision over time. High-quality blades and pneumatic clamps with a low-pressure device ensure reliable cuts.
- Versatile length determination system. Compatible with manual gauges or electronic rollers to adapt to the customer’s layout.
- Safety and ease of use. Two-hand controls and ergonomic design make operation immediate and secure.
Product Details
The GS 225 A performs precise and clean cutting of PVC glazing beads. The combination of main and secondary blades ensures smooth operations, while the universal counter-profiles provide compatibility with most profiles.
Dimensions
Length: 1,200 mm
Width: 700 mm
Height: 1,300 mm
Weight: 190 kg
Performance
Operation: manual
Operator required: 1
Frames produced per 8 hours: variable depending on the measurement system used
Power supply and consumption
Installed power: 1,2 kW
Voltage: 400 V
Minimum pressure: 7 bar
Air consumption: 60 Nl/min
Profiles that can be processed
Minimum length: 250 mm
Maximum length: depends on the measurement system used
Available options and configurations
The machine can be enhanced with functional accessories depending on operational needs:
- Glass presence simulator
- Measuring gauge (2,000 or 3,000 mm)
- MSS/V side support for gauge (compatible with MS 3,000)
- Custom-made counter-profiles (pair)
- Dedicated dust extractor for glazing bead chips
- Roller conveyor for bar loading
Ease of operation and adaptability
The GS 225 A model combines ease of use with adaptability to different line configurations. It can be integrated into manual or automatic measurement systems while consistently maintaining high cutting quality.
Choose a compact yet complete solution: request your quote or a demonstration of the GS 225 A today.
