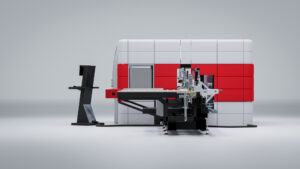

FAB CUT 3B RS
High-performance CNC cutting and machining centre for PVC profiles
High-speed cutting and processing for uncompromised productivity
Perfect if you want:
- Drastically reduce cycle times thanks to automatic overlapping of operations
- Optimize bar usage with intelligent cutting management software
- Ensure maximum precision even with profiles that are not perfectly straight
- Fully automate loading, cutting, and unloading of profiles
- Manage the entire process with a simple and intuitive software interface
Request the technical brochure now or speak with an expert.
High-speed cutting and processing for uncompromised productivity
The FAB CUT 3B RS is a CNC cutting and working centre designed to meet the needs of window and door manufacturing companies aiming for maximum production efficiency. Thanks to its innovative configuration and the integration of intelligent software with state-of-the-art mechanical components, the system can produce up to 500 frames per shift (8 hours)*, maintaining consistent processing quality over time.

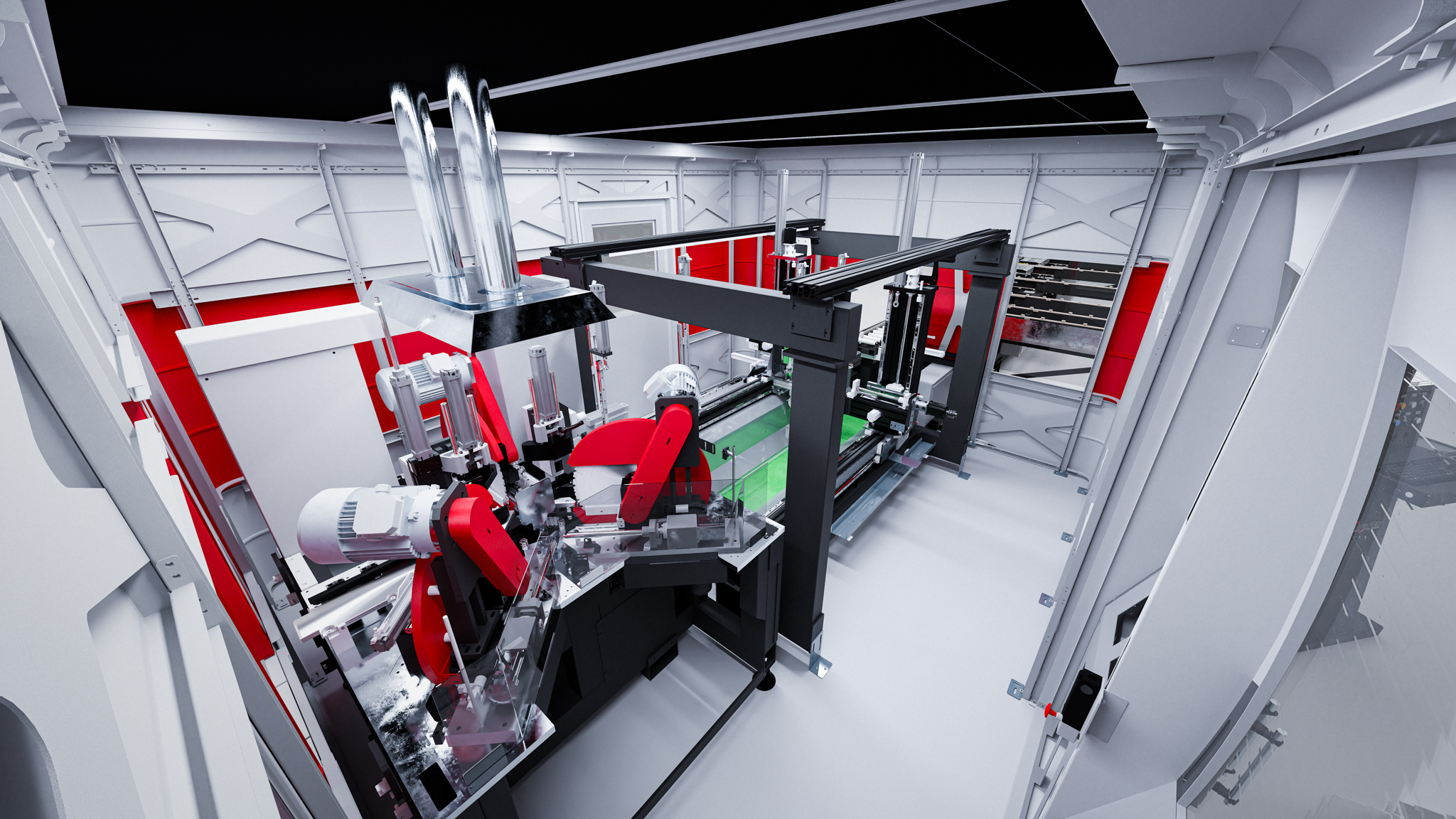

The system consists of three main modules: an automatic loading system with a dual CNC gripper, a working module with two independent high-speed spindles, and a cutting module with three synchronised blades. Each component is optimised to eliminate downtime, maximise precision, and ensure operational continuity even with the most complex profile shapes.
Productivity depends on the type of processes and profiles used.
5 reasons to choose the FAB CUT 3B RS
- Maximum operational speed. Overlapping of work phases, double CNC clamps, and independent spindles eliminate downtime and increase hourly output.
- Guaranteed long-term precision. The automatic profile alignment system corrects any curvature, while hundredth-millimeter reading via magnetic band ensures perfect positioning.
- Extreme adaptability. Handles profiles with non-standard sections and geometries effortlessly, thanks to a flexible and configurable architecture.
- Intelligent resource optimization. GRAF Synergy software automatically imports production lists and optimizes bar usage, reducing waste.
- User-friendly technology. Simple and intuitive interface for managing work cycles, with easy-to-use controls and real-time visual feedback.
Product Details
The cutting module is equipped with three Ø 550 mm blades, which are independent and synchronised, capable of making cuts at -45° / 90° / +45° on PVC profiles, including those with seals. The horizontal movement of the blades ensures speed and precision.
Dimensions
Length: 16,400 mm
Width: 4,300 mm
Height: 2,600 mm
Weight: 10,000 kg
Performance
Productivity: up to 500 frames / 8h*
Operators required: 1
power supply and Consumption
Installed power: 34 kW
Power Supply: 400 V
Air consumption per cycle: 250 Nl/min
Minimum pressure: 7 bar
Workable profiles (automatic)
Length: 500 / 6,500 mm
Width: 40 / 130 mm
Height: 40 / 120 mm
Supported features and processes
The work module is equipped with 2 high-speed rotating spindles, positioned on independently controlled 3-axis carriages. This allows for the simultaneous execution of distinct operations, such as:
- Ventilation holes
- Other operations on request for PVC profiles
- Condensate drain slots
- Handle, cylinder, and hinge holes
- Lock recesses
- Strike plate marking
Optional features and custom configurations
The FAB CUT 3B RS is available with a wide range of options to suit every production need:
- Additional third spindle
- Recover Option reinsertion of pieces into the list for reuse
- Fly Optimizer automatic measurement of bar remnants
- Soundproof cabin and chip extraction systems
- Manual labeling machine or with automatic applicator
- STATS software for time and productivity analysis
- Customization for special profiles (based on technical analysis)
- Preparation for integration with dynamic tables, EDU/ESU screwdriving bridges, RMA assembly centers
- Chip conveyor 1,200 / 2,000 mm
- Single or dual laser for marking
Automation and advanced software
The intelligent heart of the machine is the management software developed by GRAF Synergy, designed to automatically import cutting lists, optimise cycles, and monitor performance. With a user-friendly interface, the operator can easily and accurately programme and control every stage of the process.
The machine is designed for integration into Industry 4.0 systems, with capabilities for data analysis, remote assistance, and interconnection with the company’s management software.
Request the complete brochure now or book a personalised demo with our technicians to discover how the FAB CUT 3B RS can revolutionise your production.
