FAB CUT 3B ALU
High-Speed Cutting and Machining Centre for Aluminium Profiles
Extreme productivity, absolute precision: the ideal partner for those who want to cut and work with aluminium profiles without compromise.
Perfect if:
- You need to significantly boost your daily productivity.
- Do you want to reduce waste by optimising cutting lists?
- We work with aluminium profiles that have complex shapes or are not perfectly straight.
- Are you looking for a car that ensures consistent precision and reliability over time?
- Do you want to reduce your operational workload with an integrated and user-friendly CNC system?
Request the technical brochure now or speak with an expert.
Extreme productivity, absolute precision: the ideal partner for those who want to cut and work with aluminium profiles without compromise.
The FAB CUT 3B ALU is an 8-axis CNC cutting and working centre, designed to meet the needs of the most demanding window manufacturers. Capable of producing up to 220 single-leaf windows per shift, it combines processing speed, adaptability, and consistent quality over time.

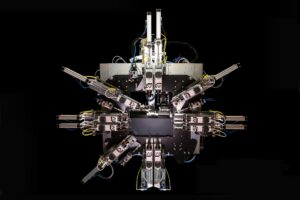

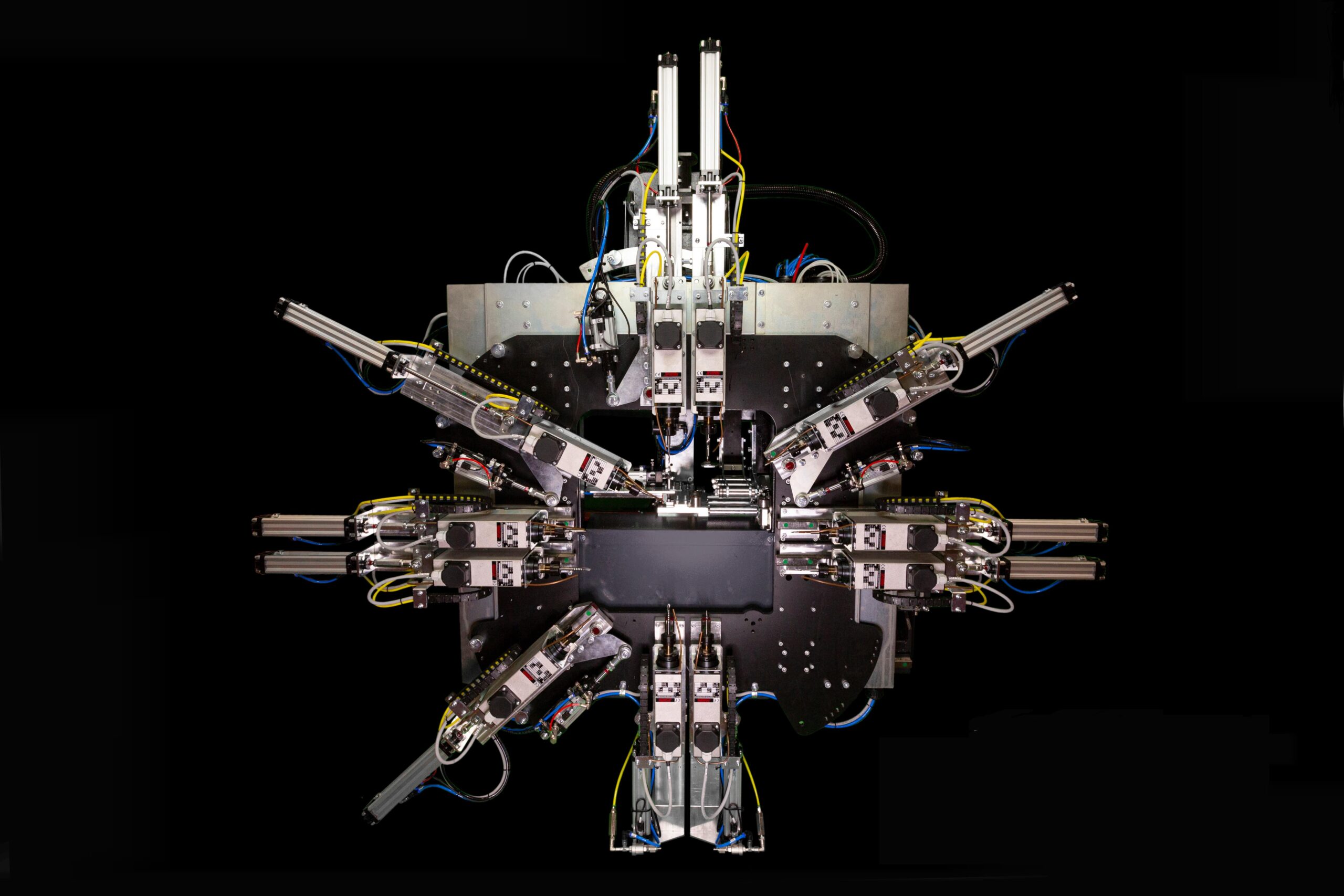

Thanks to the cutting module with 3 independent blades Ø 550 mm and the working module with up to 12 High Speed spindles, it performs high-precision machining and cutting, optimising every cycle to the fullest. It is the ideal choice for those seeking smart automation, the ability to adapt to complex profiles, and a quick and measurable return on investment.
5 reasons to choose the FAB CUT 3B ALU
- Maximum operational speed. Working module with up to 12 High Speed spindles and simultaneous cutting on 3 synchronised blades: more operations in less time.
- Adaptability to more complex profiles. The automatic alignment system also straightens bars that are not perfectly straight, ensuring flawless results.
- Intelligent Bar Optimization. GRAF Synergy software reduces waste by generating optimised production lists.

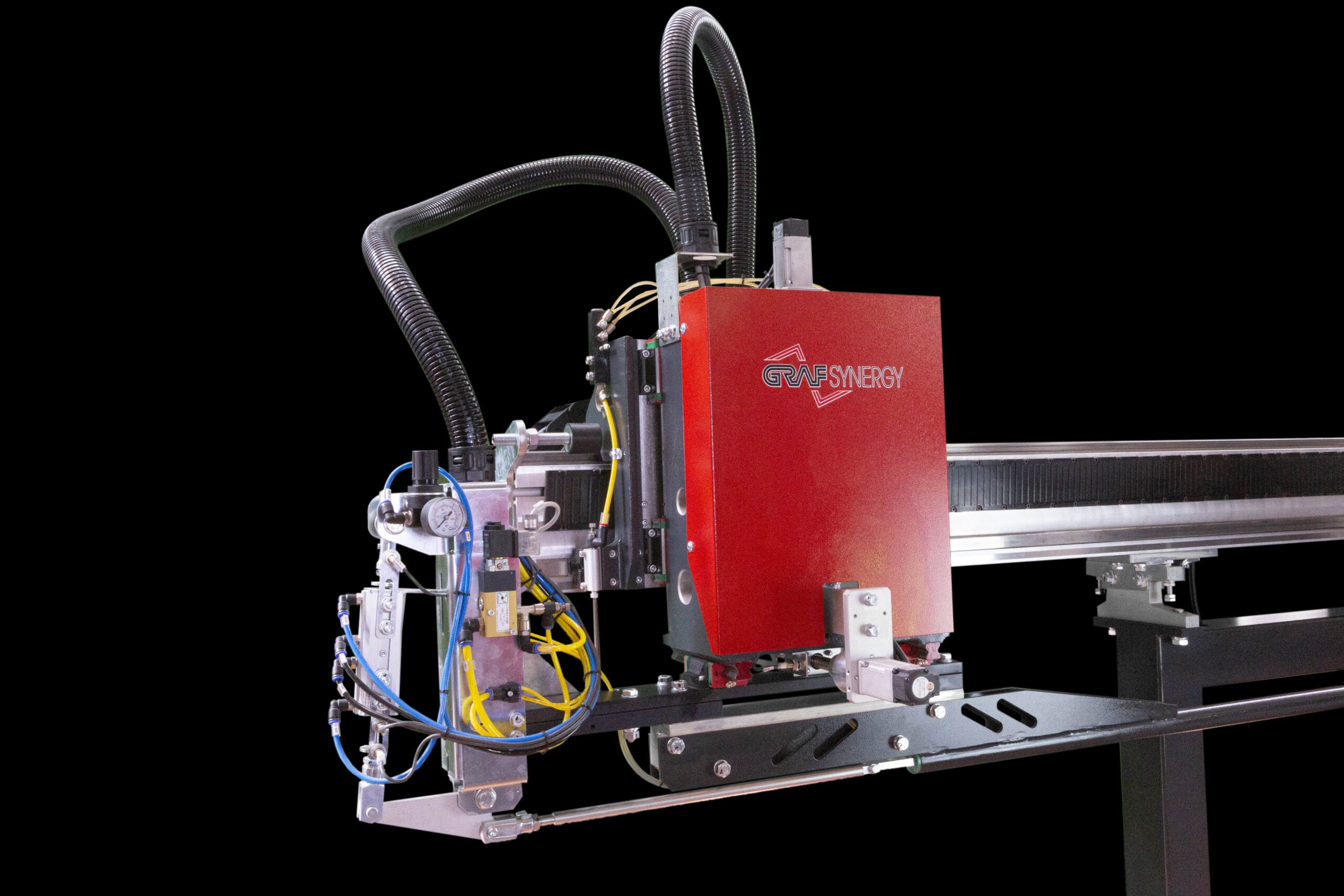

- Guaranteed micrometric precision. CNC clamp with hundredth magnetic band: every cut starts from the actual position of the profile.
- Intuitive Interface. A user-friendly system for easy and quick management of work cycles, even by a single operator.
Product Details
The FAB CUT 3B ALU performs all the main operations on aluminium profiles, combining speed of execution with stability of results.
Dimensions
Length: 15,250 mm
Width: 3,400 mm
Height: 2,800 mm
Weight: 4,500 Kg
power supply and Consumption
Installed power: 20 kW
Power Supply: 400 V
Air consumption per cycle: 150 Nl/min
Minimum operating pressure: 7 bar
Performance
Productivity: up to 220 units/8h*
Operators required: 1
(*depending on profile and tasks)
workable profiles
Length: 500 / 6,500 mm
Width: 40 / 130 mm
Height: 40 / 180 mm
Supported features and processes
Work Form:
- Condensate drain holes
- Holes for handles, hinges, cylinders
- Lock picking
- Ventilation holes
- Feedback marking
- Custom processing available upon request.
Cutting Form:

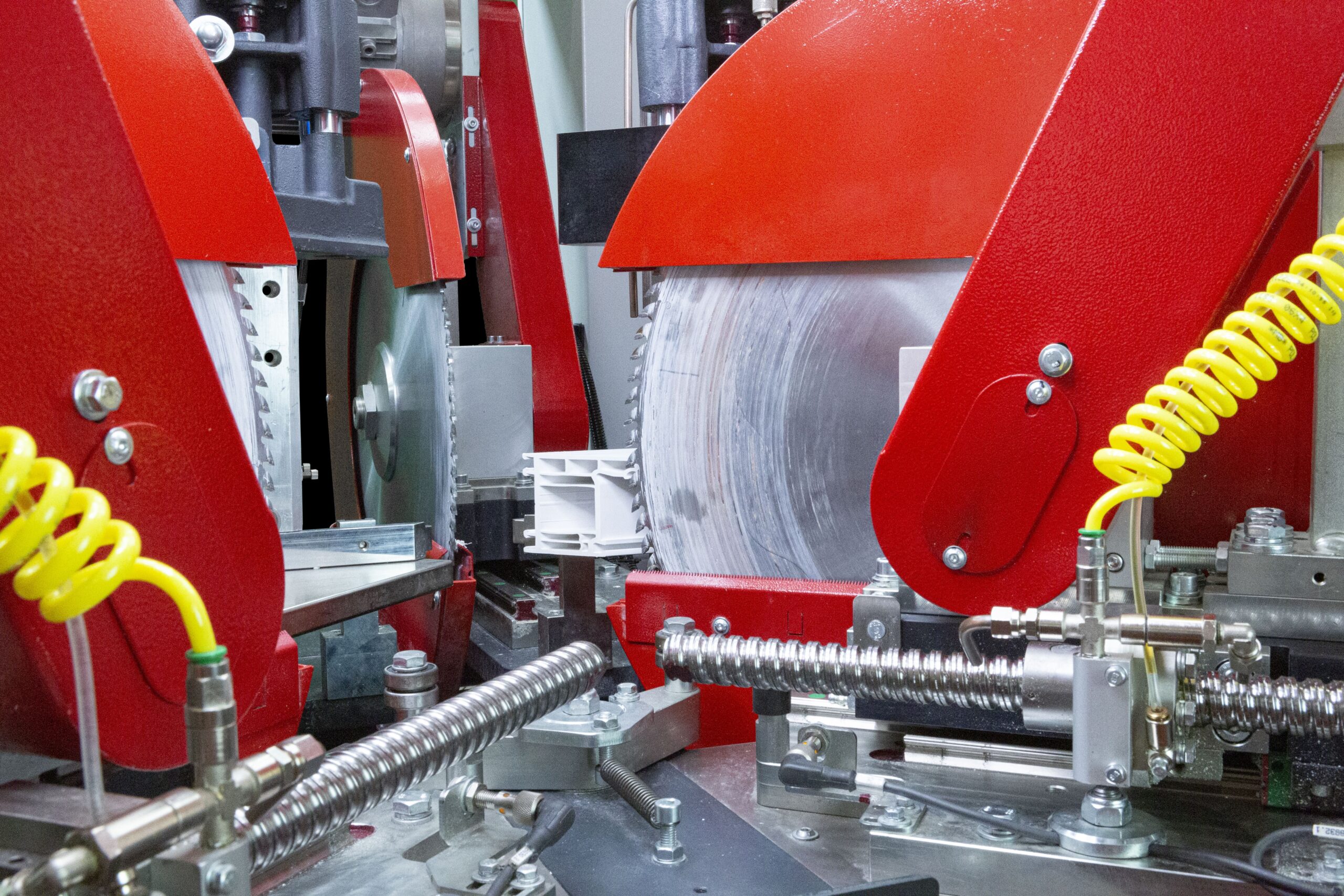

- 3 lame Ø 550 mm
- Cutting angles: -45° / 90° / +45°
- Automated horizontal movement
Optional available
The FAB CUT 3B ALU can be configured with a wide range of options to perfectly suit every production requirement:
- 6 additional spindles for the work module
- STATS software for production data analysis
- Fly Optimizer for automatic waste recovery
- Recovery option for post-error rework
- Custom adaptations for special profiles
- Chip conveyor (1,200/2,000 mm)
- Industrial vacuum cleaner with 2 bags
- Custom soundproof cabin
- Motorised unloading table (also on the opposite side)
- Integration with ASG-E Screw Driving Centres (1 or 2)
- Manual or automatic labelling
- Laser for marking (single or double)
- Tool breakage sensors
Technology and Automation
Every component of the FAB CUT 3B ALU is designed to integrate into a framework of digital and flexible production. The centre uses proprietary GRAF Synergy software for optimising lists and managing processes, and is equipped for integration into Industry 4.0 environments.
- Advanced CNC system with 8-axis control
- High-resolution reading position with magnetic band
- Automatic extractors and motorised belt tables
- Simple and multilingual operator interface
- Compatibility with monitoring and tracking systems
Contact us to find out if FAB CUT 3B ALU is the right solution for your production.
