F 130
Manual double-head pantograph for quick milling and drilling.
Maximum simplicity for precise machining of PVC and aluminium profiles
Perfect if…
- Do you want to create recesses and handle holes easily and quickly?
- You work in a craft workshop or on a semi-automatic production line.
- You need a compact yet functional car.
- Are you looking for a ready-to-use solution, free from CNC complexities?
- Do you want to reduce manual processing times with dedicated jigs and fixtures?
- You need operational flexibility with cutters of Ø10 and Ø12 mm.
Request the technical brochure now or speak with an expert.
Maximum simplicity for precise processing of PVC and aluminium profiles
The F 130 pantograph is the ideal solution for workshops seeking operational speed and manual precision in the machining of recesses and handle holes.
With two dedicated heads – one for vertical milling with a template and one for horizontal drilling – it allows for the quick execution of all essential operations for preparing PVC or aluminium frames.
Compact and intuitive, it is designed to reduce setup times, increase efficiency, and ensure consistent results.
The fully manual operation makes it perfect for those who want to maintain direct control over the process, without compromising on quality and versatility.
5 reasons to choose F 130
- Two independent heads for simultaneous operations. Vertical milling and horizontal drilling in a single station, without the need for repositioning.
- Jig-assisted milling for precise results. Copying system with adjustable 3-diameter probes, ideal for standard recesses on PVC and aluminium profiles.
- Integrated 3-point handle drilling. Horizontal module with multiple tips for making precise holes in a single pass.

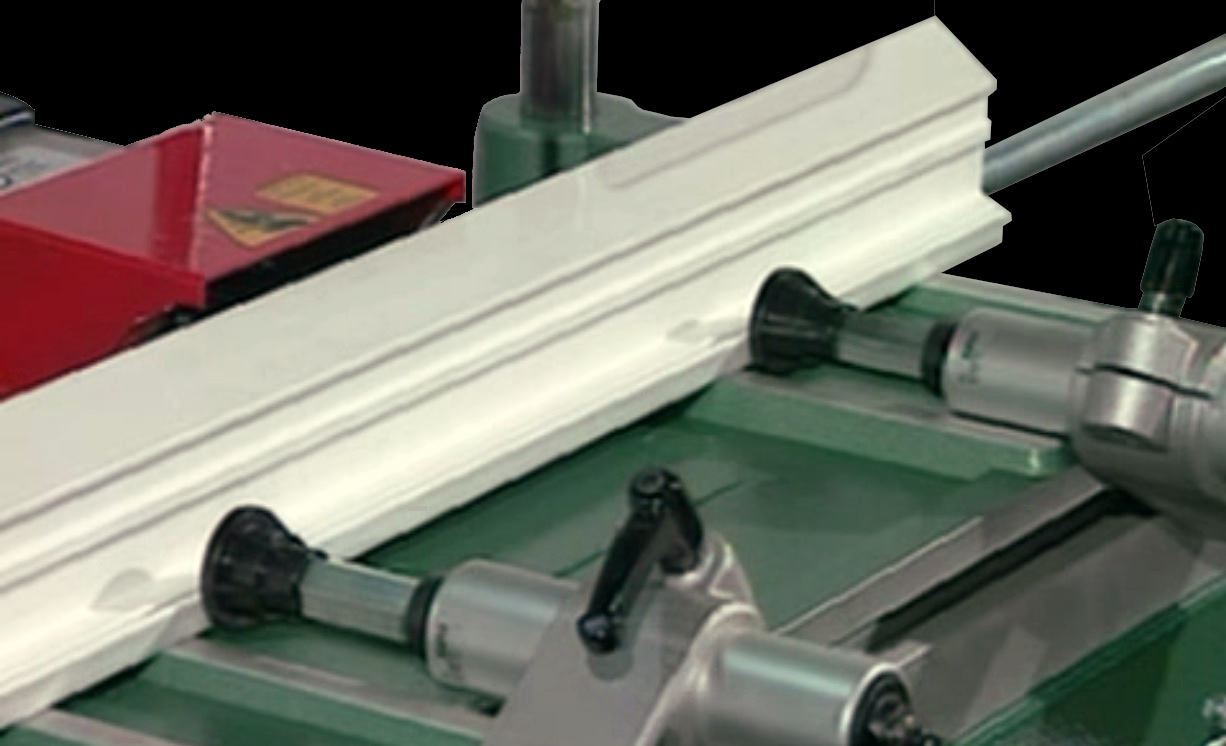

- Secure clamping of the workpiece. Vertical and horizontal pneumatic vice system for quick and stable fastening.
- Compact size, great efficiency. Just 1,050 mm in length for a lightweight machine (150 kg), easy to install even in tight spaces.
Product Details
The F 130 pantograph allows for a comprehensive range of manual milling and drilling operations, ensuring reliable and repeatable results.
Dimensions
Length: 1,050 mm
Width: 850 mm
Height: 1,600 mm
Weight: 150 kg
Performance
Operation: Manual
Number of operators: 1
Axis travel (X / Y / Z): 490 / 140 / 140 mm
power supply and Consumption
Installed power: 1.1 kW
Power supply: 400 V
Minimum operating pressure: 7 bar
Air consumption per cycle: 5 Nl/min
Supported features and processes
Main processes:
- Vertical cuts using a template
- Longitudinal and transverse milling
- Locking holes and accessories
- Handle holes (3 simultaneous points)
The copying unit is equipped with adjustable manual gauges set to 3 diameters, compatible with cutters of Ø10 and Ø12 mm, easily adapting to various profile configurations.
Optional features and available configurations
To enhance the versatility of the F 130 pantograph, it can be equipped with a range of optional accessories:
- Hydraulic-pneumatic advancement for drilling head
- Manual centring device (up to 2,300 mm)
- Pneumatic actuators
- Stop plate with dimensions 150×150 mm
- Star stop with 4 positions
- Rollers and side supports measuring 1,500 mm
- Pneumatic refrigeration system
These options allow for the customization of the machine according to specific production needs, enhancing both ergonomics and productivity.
Technology and Control
The F 130 is a fully manual pantograph designed for those who prefer simplicity and direct control over the process. Although it does not feature CNC technology, it incorporates practical solutions to enhance precision and safety, such as:
- Pneumatic locks
- Adjustable testers
- Automatic cooling of tools
Its robust and functional design ensures long-term operational reliability, even with intensive use.
Request the brochure or a personalised consultation now.
Do you want to know if the F 130 pantograph is the right choice for your department? Download the technical data sheet in PDF or contact our experts now for a tailored consultation.
