F 126
Manual header for PVC crosspieces and uprights
The compact and versatile head for precise and fast milling, even in tight spaces.
Perfect if you’re looking for a solution for…
- Accurately label PVC cross members and uprights
- Work safely thanks to the protective casing of the operational area.
- Optimising time with quick tool changes
- Use a single operator for the entire work cycle.
- Having a compact car with a small footprint.
Request the technical brochure now or speak with an expert.
The compact and versatile head for precise and fast milling, even in tight spaces.
The F 126 from GRAF Synergy is a manual mitre saw with a variable angle, ideal for processing PVC cross members and uprights. Compact, precise, and equipped with pneumatic clamps for secure workpiece holding, it offers a simple yet reliable milling system, even in small to medium-sized production environments.
Thanks to the 27 mm diameter tool holder and the quick change system for the milling head, it allows for agile tool changes and reduces downtime. The presence of the squareness device is perfect for inclined machining at ±45°, while the option for oil-pneumatic feed enables the automation of the process according to production needs.
5 reasons to choose F 126
- Immediate Tool Change
Thanks to the dedicated pneumatic device, the replacement of the milling head takes just a few seconds, minimising machine downtime. - Intuitive and Safe to Use
The simplified interface and built-in protections make the F 126 perfect for operators with little experience. - Optimal Management of Fumes and Chips
Designed with a Ø 100 mm connection for waste evacuation, it enhances cleanliness and the healthiness of the work environment. - Stable profile clamping
Pneumatic vertical and horizontal clamps ensure maximum precision during processing. - Sturdy and Compact Structure
Steel frame with leveling feet: durability and minimal footprint in the workshop.
Product Details

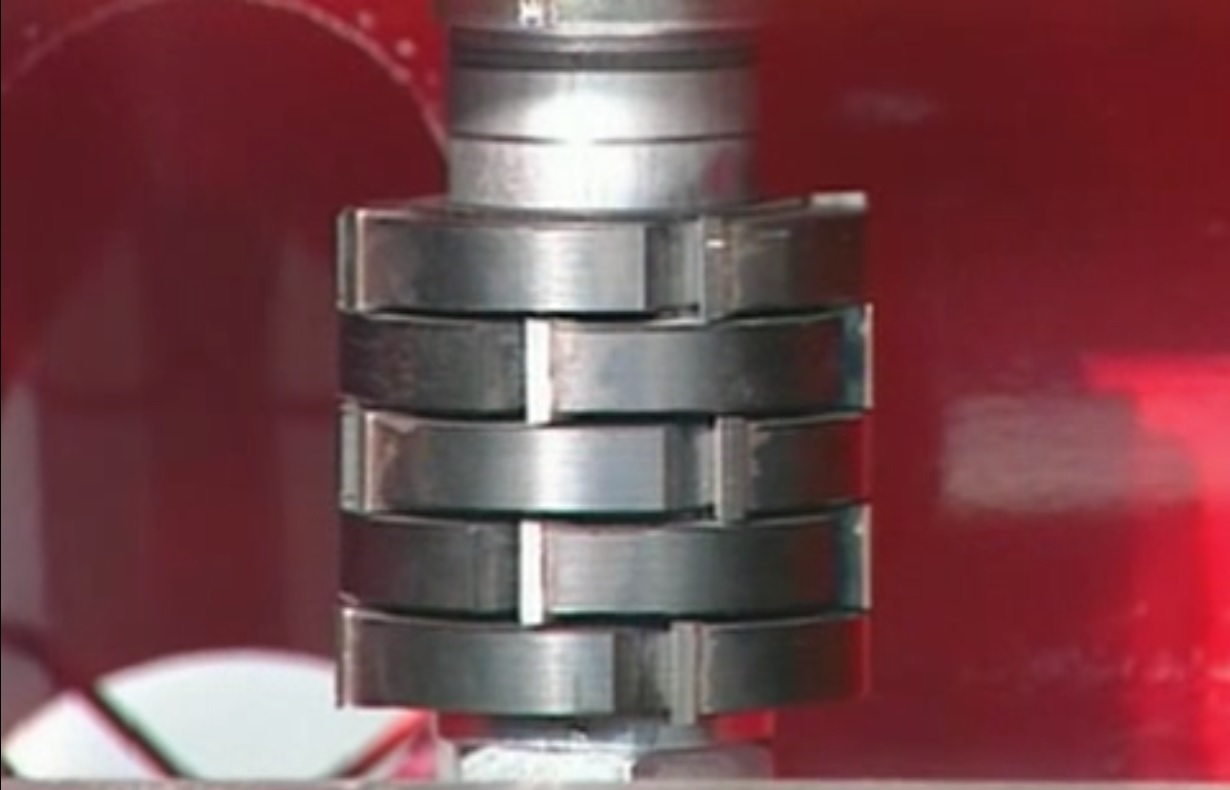

Designed to deliver maximum header precision, the F 126 is intended for machining PVC profiles with adjustable angles of up to ±45°. The milling head features a single horizontal spindle, perfect for achieving a clean and consistent cut on every piece.
Dimensions
Length: 1,050 mm
Width: 850 mm
Height: 1,600 mm
Weight: 130 kg
Performance
Operations: manual
Number of operators: 1
power supply and consumption
Installed power: 1.1 kW
Power Supply Voltage: 400 V
Air consumption per cycle: 15 Nl/min
Minimum operating pressure: 7 bar
Workable profiles
Max height: 110 mm
Maximum width: 280 mm
Supported features and processes
Main processes:
- End milling of cross members
- Header of posts
With its basic manual setup, the machine is suitable for low to medium volume production, but it can be upgraded to enhance performance.
Optional features and available configurations
To further enhance efficiency and cater to specific needs, the F 126 can be configured with a range of technological options:
- Hydraulic-pneumatic advancement of the milling head to reduce manual effort.
- Cooling system for milling machines, useful for processing aluminium profiles.
- Four-position mechanical stop to optimise the repeatability of machining operations.
These accessories make the F 126 an even more flexible tool, suitable for various production scenarios.
