CNC vertical header for PVC cross members and uprights
The header becomes automatic, fast, and perfectly integrated into the production cycle
Perfect if…
- Do you want to fully automate the header of the crossbars?
- Are you looking for a machine that integrates multiple operations in a single step?
- You need to work on different profiles quickly and accurately.
- Do you want to reduce production time and costs?
- Do you want to ensure consistency and constant cleanliness of the work surface?
Request the technical brochure now or speak with an expert.
The manual pantograph that combines flexibility, speed, and professional quality

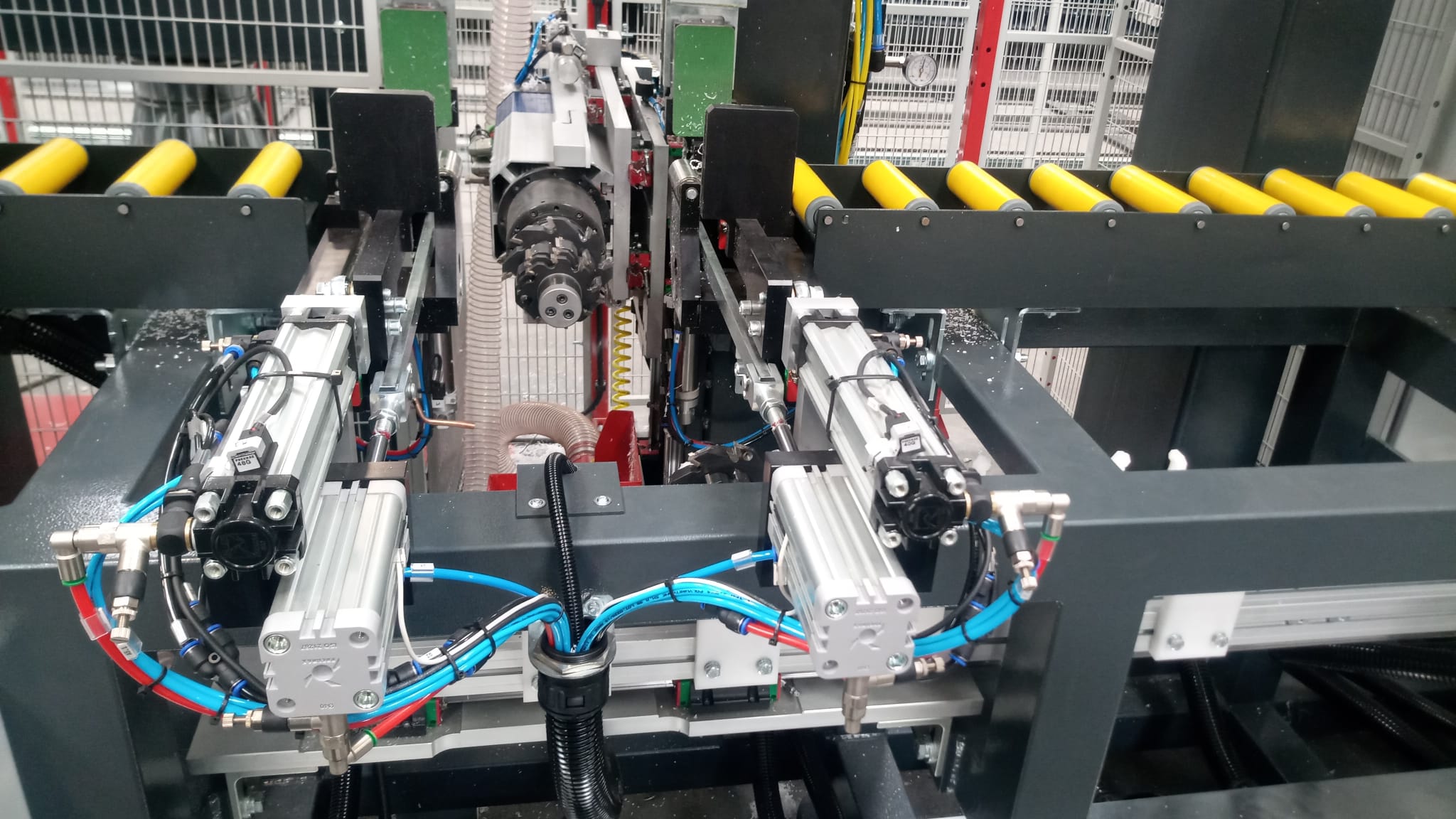

The EMV is a 4-axis automatic vertical CNC header designed to accurately shape the ends of PVC crossbars and uprights.
It stands out for its ability to integrate all necessary processes into a single system, drastically reducing production times and ensuring consistent quality over time.

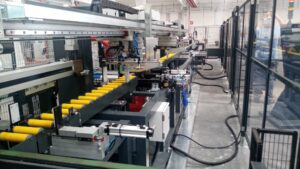

Perfectly compatible with the ASG screw fastening centre, it allows for header, machining, and screw fastening in a single cycle, eliminating manual steps and increasing overall efficiency.
Thanks to the automated warehouse and the quick tool change system, the EMV is the ideal choice for those seeking uncompromising productivity.
5 reasons to choose EMV
- All in one system. Integrates header, screwing, and processing on cross members, avoiding shifts and rework.
- Time and costs under control. Thanks to automated management and continuous processing, it optimises the entire production process.
- Automated warehouse for 5 milling machines. Fast and precise CNC tool change, without manual intervention.
- Custom processing for every profile. Ventilated servo spindle with speed control based on the material.
- Dual suction for a clean environment. A mobile suction system that follows the milling group, keeping the work area clear.
Product Details
The EMV is designed to precisely and consistently shape the ends of PVC crossbars and uprights through a fully automated process. The system uses custom software programs for each profile, combined with high-precision mechanical adjustments, ensuring the same quality over time.
Machine dimensions
Length: 4,500 mm
Width: 1,500 mm
Height: 2,200 mm
Weight: 1.500 kg
Operational Performance
Operation: Automatic, 4-axis CNC
Operators required: 1
Productivity: Dependent on the inline machine (e.g. ASG)
power supply and Consumption
Installed power: 8 kW
Voltage: 400 V
Air consumption: 400 Nl/min
Minimum pressure: 7 bar
Workable profiles
Maximum height: 110 mm
Maximum width: 280 mm
supported processes

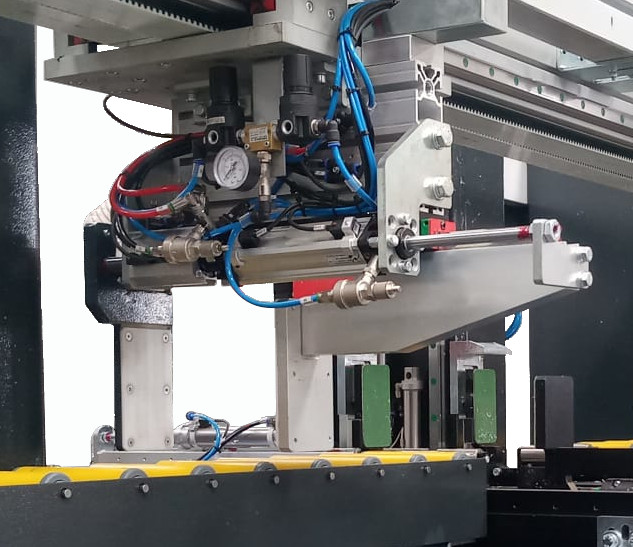

The ventilated spindle is controlled by a CNC axis that adjusts the rotation speed according to the material, while the 4-axis controlled clamping discharge system completes the machining cycle safely and efficiently.
Optional features and available configurations
The machine is supplied in a fully equipped configuration: no additional options are available, as the system is already optimised to ensure maximum performance in its category.
Technology and automation
The unit is equipped with a CNC automatic storage system that can hold up to 5 milling groups (incorrectly referred to as 8 in some texts), with a tool change system managed by automatic control. Each group is dedicated to specific machining operations and is dynamically selected according to the incoming profile.
The 4-axis CNC control ensures smooth and repetitive movements, while integration with upstream systems (such as the ASG centre) transforms the EMV into a central hub for a continuous and uninterrupted production line.
Do you want to reduce lead times and enhance the quality of your product?
Download the EMV brochure or contact us for a dedicated demo: discover how this unit can transform your production line.
