Efficient Drilling Unit: CNC Station for Fixing Drilling on PVC Profiles
Automatic drilling, zero downtime
Perfect if:
- Perform the fastening drilling automatically directly on the line.
- Reduce cycle times without sacrificing accuracy.
- Working with PVC profiles that already have reinforcement integrated.
- Automate the drilling of the crossbeams as well.
- Eliminate manual intervention through comprehensive CNC logic.
- Integrate drilling into a Cutting and Working Centre line.
Request the technical brochure now or speak with an expert.
Automatic drilling, zero downtime

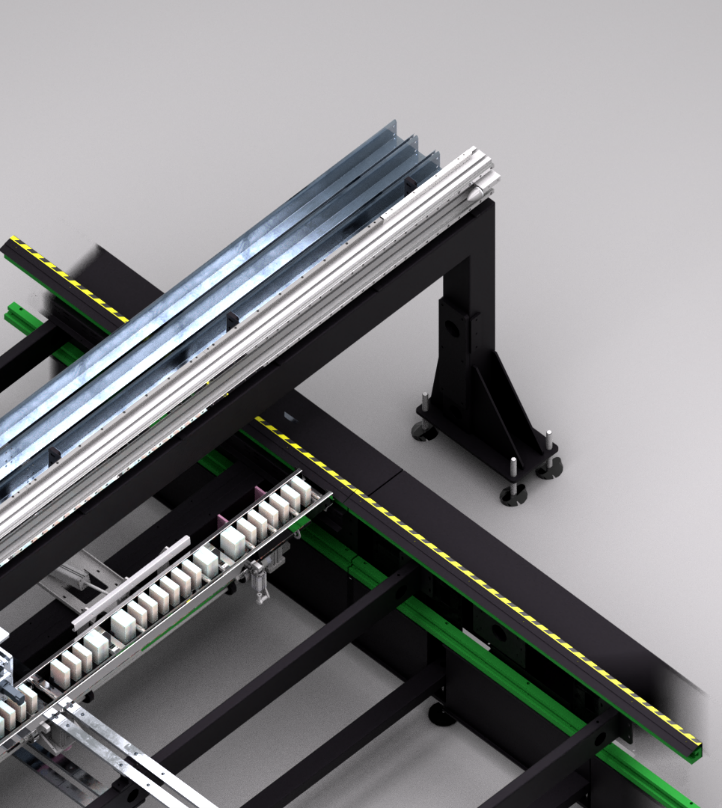

EDU is the CNC drilling station developed by Graf Synergy for the automatic and precise execution of peripheral fixing holes on already reinforced PVC profiles. It can be directly integrated into the dynamic table, allowing drilling to take place during the production flow without any interruptions, thereby reducing cycle times and improving the overall quality of the processing.
With a load-bearing bridge that accommodates up to 3 vertical drilling units, the system stands out for its flexibility, precision, and advanced automation, making it perfect for high-productivity lines and factories geared towards Industry 4.0.
5 reasons to choose EDU
- Zero Time Speed. Drilling occurs in line, without interrupting the production flow on the dynamic table.
- Parametric Precision. Each unit monitors depth, position, and feed rate for perfect drilling.
- Maximum automation. The system operates completely autonomously: no operator required.
- Operational Versatility. In addition to perimeter drilling, it is also possible to drill the cross members.
- Advanced integrated software. Complete CNC management with coordinate control on the X and Y axes, for maximum programming flexibility.
Product Details
EDU is the CNC drilling station developed by Graf Synergy for the automatic and precise execution of perimeter drilling for fixing on already reinforced PVC profiles.
Directly integrable onto the dynamic table, it allows drilling to be carried out during the production flow without any interruptions, reducing cycle times and improving the overall quality of the processing.
Machine dimensions
Length: 4,500 mm
Width: 1,800 mm
Height: 2,700 mm
Weight: 2.500 kg
Power supply
Installed power: 9 kW
Power Supply: 400 V
Air consumption: 200 NI/min
Operating pressure: 7 bar
Operational features
- Number of drilling units: up to 3 (vertical)
- X-axis movement: automatic longitudinal
- Y-axis movement: automatic cross positioning
- Operating mode: CNC
- Operators required: 0
Working profile dimensions
- Length: 350 – 4,000 mm
- Width: 40 – 130 mm
- Height: 40 – 120 mm
Types of Work
- Automatic perimeter fastening drilling
- Possibility of drilling for cross member fastening
Integration
- Compatible with Graf Synergy dynamic table.
- Ideal for CNC Cutting and Machining Centres
TECHNOLOGY AND AUTOMATION
The EDU represents a technological leap in the management of perimeter drilling. The entire process is controlled by advanced software that manages the trajectories and parameters of each individual drill. Thanks to direct integration with the dynamic table and simultaneous control of the X and Y axes, it is possible to achieve maximum productivity with minimal tolerances, even on already reinforced profiles.
Contact us to find out if the EDU is the right solution for your production.
