CUT 500 ALU
CNC cutting centre for aluminium profiles
Compact and high-performance automatic cutting centre
Perfect for:
- You need to automate the cutting of aluminium profiles to increase production speed.
- Small or variable batches make it difficult to optimise cutting lists.
- Profiles sometimes arrive warped or with geometric defects.
- You have limited space in the department and need a compact solution.
- Do you want to reduce operator intervention and save on labour costs?
Request the technical brochure now or speak with an expert.
Compact and high-performance automatic cutting centre
CUT 500 ALU is a CNC cutting centre with 1 or 2 controlled axes, designed to fully automate the cutting process for aluminium profiles, even those that are not perfectly straight. From feeding to trimming and unloading, each stage is managed autonomously, ensuring precision, speed, and no manual intervention.
Thanks to its compact structure, high operational speed, and versatile configuration, it represents the ideal solution for those looking to increase productivity while reducing waste and simplifying the production cycle.
5 Reasons to Choose the CUT 500 ALU
- Consistent Precision Over Time. Automatic alignment system that compensates for non-linear profiles, ensuring impeccable cutting quality in every condition.
- Advanced Bar Optimisation. The GRAF Synergy software allows for minimising waste and improving raw material yield.
- Comprehensive and user-friendly control. Intuitive interface with simple menus, suitable for non-specialised operators.
- Maximum integration. Designed for connection to one or two ASG-E screw fastening centres and compatible with digital management systems.
- High Reusability Value. The Fly Optimizer system automatically measures bar remnants, allowing them to be reintegrated into new cutting lists.
Product Details

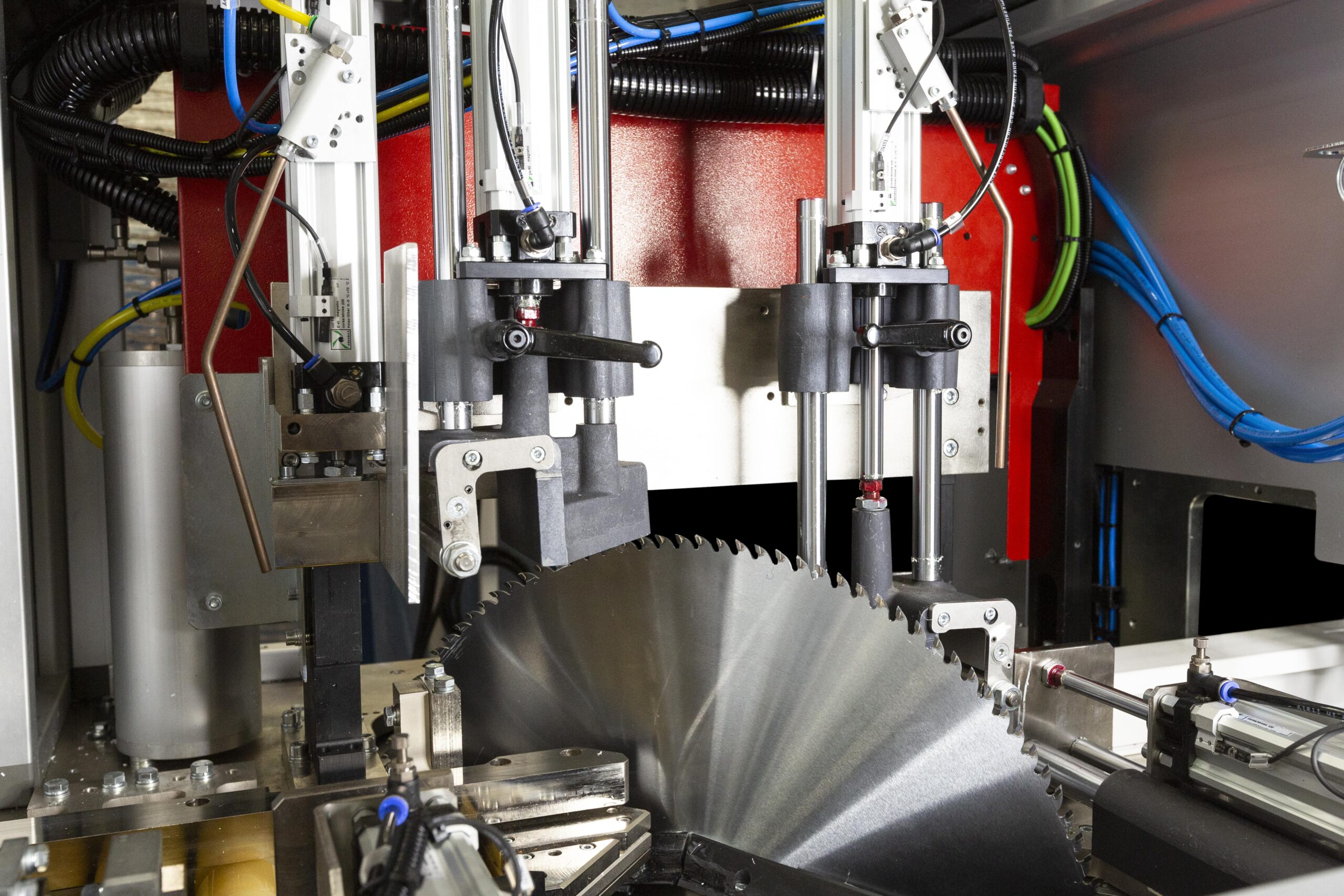

CUT 500 ALU integrates all the processing stages required for cutting aluminium profiles into a single centre: from the automatic loading of bars to the unloading of finished pieces. The Ø500 mm blade, with an upward movement, ensures precision and cleanliness even on large sections.
Dimensions
Length: 12,000 mm
Width: 2,200 mm
Height: 1,600 mm
Weight: 2.850 Kg
power supply and Consumption
Installed power: 7 kW
Power Supply: 400 V
Air consumption per cycle: 100 Nl/min
Minimum operating pressure: 7 bar
Performance
Productivity: up to 300 windows/8h (varies depending on the profile)
Operators required: 1
workable profiles
Length: 500 / 6,500 mm
Width: 40 / 130 mm
Height: 40 / 135 mm
Supported features and processes
Main Processes:
- 90°, -45°, +45° cuts
- Automatic profile extraction
- Possibility of mechanical stops for fixed-size cuts
Optional available
To meet specific production requirements, the CUT 500 ALU is available with a variety of optional features.
- Blade Ø550 mm for cutting profiles up to 180 mm
- Profile loading system from 400 to 700 mm
- Additional pressure kits
- Brushless blade rotation for intermediate cuts (-45°/+45°)
- Fly Optimizer for automatic bar residue optimisation
- Sensors for detecting incorrect height/width of profiles
- Chip conveyor (1200/2000 mm), double bag dust extractor
- Extension for discharge plan, horizontal clamps for large sections (up to 230 mm)
- Manual labeler, ASG-E connection, setup for PVC
TECHNOLOGY AND AUTOMATION

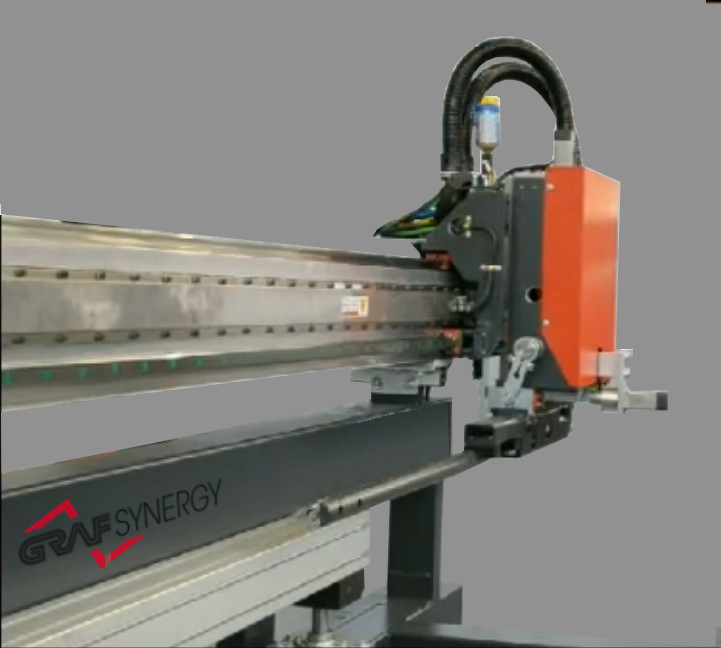

Equipped with the latest control systems, the CUT 500 ALU uses a brushless motor for the pusher and integrates smart operating logic with sensors to prevent loading errors. The interface is designed to facilitate use by any operator and allows for complete management of the machine cycle with just a few commands. The machine is ready for Industry 4.0, making it compatible with ERP or MES systems for remote monitoring and production optimisation.
Contact us to find out if CUT 500 ALU is the right solution for your production.
