Automatic table for hinge assembly and corner milling of doors

Maximum precision in hardware assembly: automates drilling and milling after welding

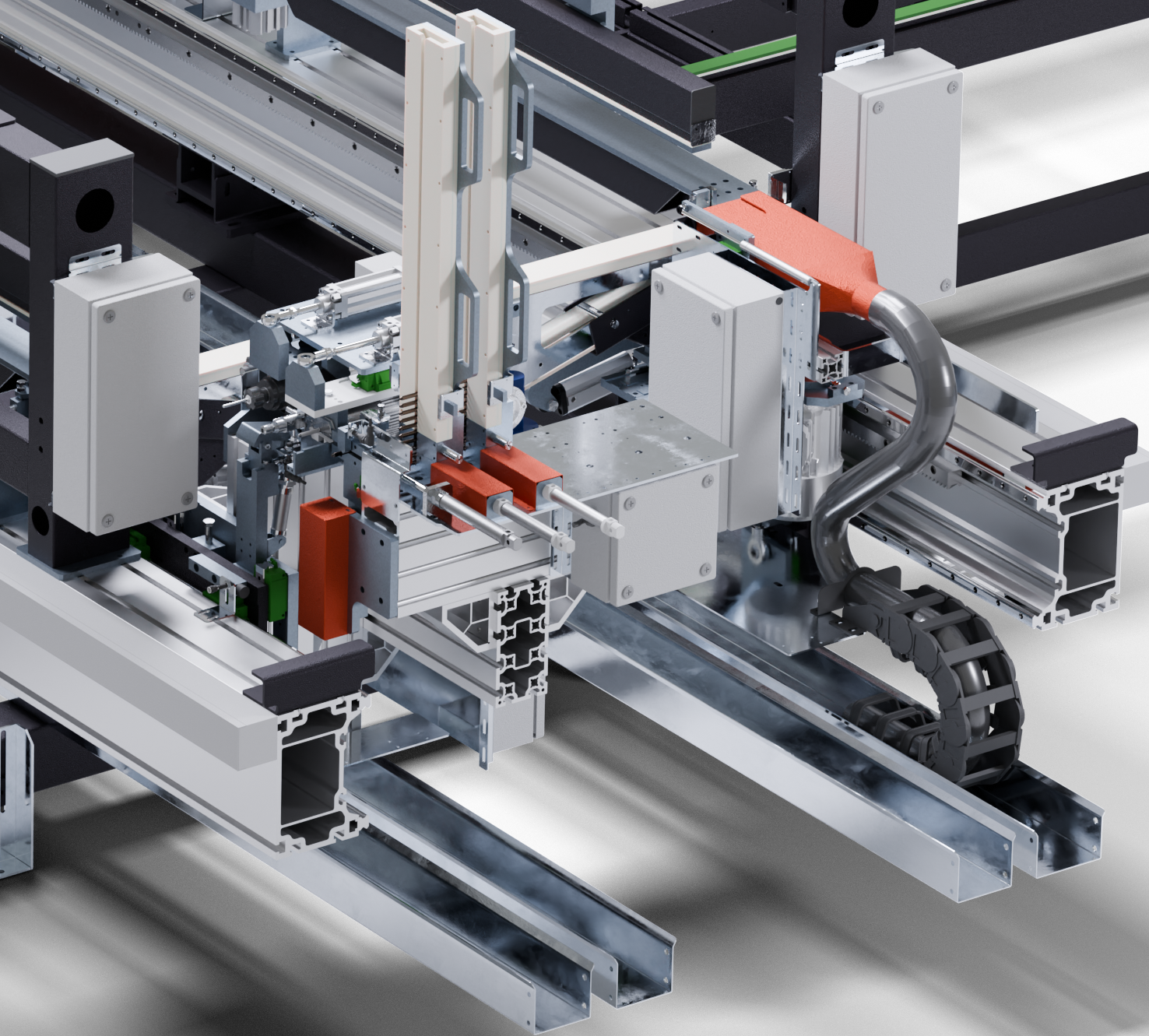

ASW is the automatic table designed by GRAF Synergy to automate two critical phases of PVC door production: the drilling and hinge assembly (including anuba type for the French market) and the milling of the two corner exchange stops generated by the welding of the three door profiles with the reduced door.

Thanks to a robust steel structure and a scratch-resistant worktop with transport straps, ASW enables high-precision processing on complete doors, reducing errors and increasing efficiency.

The cycle is fully automated: from gripping to positioning, from processing to release, each phase is managed by an intelligent system with pneumatic jaws and automatic reference plane measurement.

5 reasons to choose ASW

• Integrated double processing. One workstation performs drilling, hinge assembly, and corner milling, reducing movement and improving productivity.
• Guaranteed repeatable precision. The automatic measurement of the reference plane ensures perfect centring and consistent machining on every piece.
• Compatibility with all types of doors. Works with hinged or tilt-and-turn doors, using either traditional or concealed hinges, even on combined frames.
• Fully automated cycle. Automatic internal handling between stations and pneumatic locking for stability during every phase.
• Seamless integration into the production flow. Positioned between SL4-FF EVO and FAZ workbench, it enables the complete production of finished doors in just 3 steps.
