ASG-E
Automatic work and screwing centre for reinforced PVC profiles
Maximum precision and automation in the processing of reinforcements: the only CNC centre designed for PVC profiles with pre-inserted metal reinforcement.
Perfect if…
- You need to work with PVC profiles that already have metal reinforcement installed.
- Do you want to eliminate manual screw driving errors?
- You need a compact machine that can be integrated into a production line.
- Are you looking for complete control over fastening parameters?
- Do you want to minimise machine downtime caused by chips?
- Do you want to increase the number of pieces per shift while maintaining maximum precision?
Request the technical brochure now or speak with an expert.
Maximum precision and automation in the processing of reinforcements: the only CNC centre designed for PVC profiles with pre-inserted metal reinforcement.
ASG-E is the first CNC machining centre on the market capable of performing screw fastening and drilling on PVC profiles with pre-inserted metal reinforcement, offering an unprecedented level of automation, precision, and versatility.
Designed to drastically reduce labour and increase efficiency, it integrates fully configurable intelligent modules for screwing and drilling.
Thanks to its compatibility with GRAF Synergy lines, it fits perfectly into both stand-alone productions and automated workflows. Ideal for those looking to eliminate rework, avoid human errors, and increase productivity with just one operator.
5 reasons to choose ASG-E
- Total precision, even with reinforcements already in place. The only machine designed to work with pre-reinforced profiles, without compromising on quality.
- Complete digital control of screwing. Automatic management of position, depth, torque, and speed: zero errors, zero rework.
- High-Performance Brushless Screwdrivers. Fast, quiet, and energy-efficient: they operate alternately or simultaneously to optimise every cycle.
- Integrated chip-breaking system. Prevents jams and machine stoppages: smoother operation, less waste, maximum operational continuity.
- Flexible integration in every production line. Usable both in stand-alone mode and connected to any GRAF Synergy cutting/working centre.
Product Details
ASG-E offers a comprehensive range of processing for reinforced PVC profiles, with fully automated cycles thanks to separate modules and independent movements on the X and Y axes. The brushless screwdriver ensures precise insertions, while the high-speed chucks perform perfect drilling.
Dimensions
Length: 2,400 mm
Width: 9,300 mm
Height: 2,000 mm
Weight: 1.450 kg
Performance
Productivity: up to 200 square metres / 8 hours (depending on profile and processing)
Operators required: 1
power supply and Consumption
Installed power: 5 kW
Supply voltage: 400 V
Minimum pressure: 7 bar
Air consumption per cycle: 800 Nl/min
Workable profiles
Length: 300 / 3,500 mm (up to 6,000 mm available on request)
Width: 40 / 130 mm
Height: 40 / 130 mm (up to 180 mm upon request)
Supported features and processes
Main services:

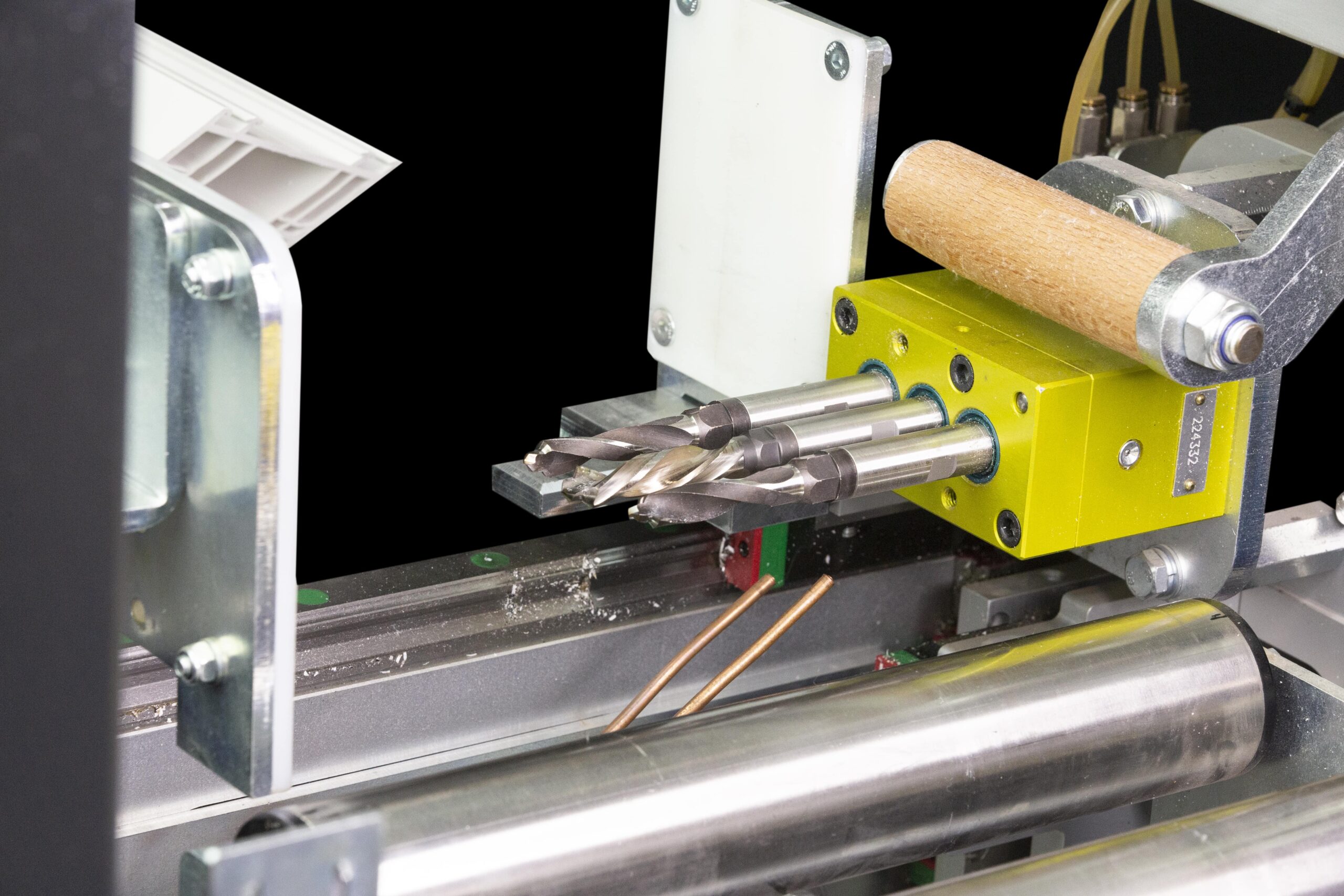

- Triple handle hole in standalone mode or can be integrated into a GRAF Synergy automatic line.
- Reinforcement fastening
- Wall mounting holes
- Cross holes
Optional and configurations
The ASG-E is designed to meet every production requirement. Upon request, it can be equipped with:
- Connection to automatic tables and Barcode Reader
- 2 additional screwdrivers with automatic distance adjustment

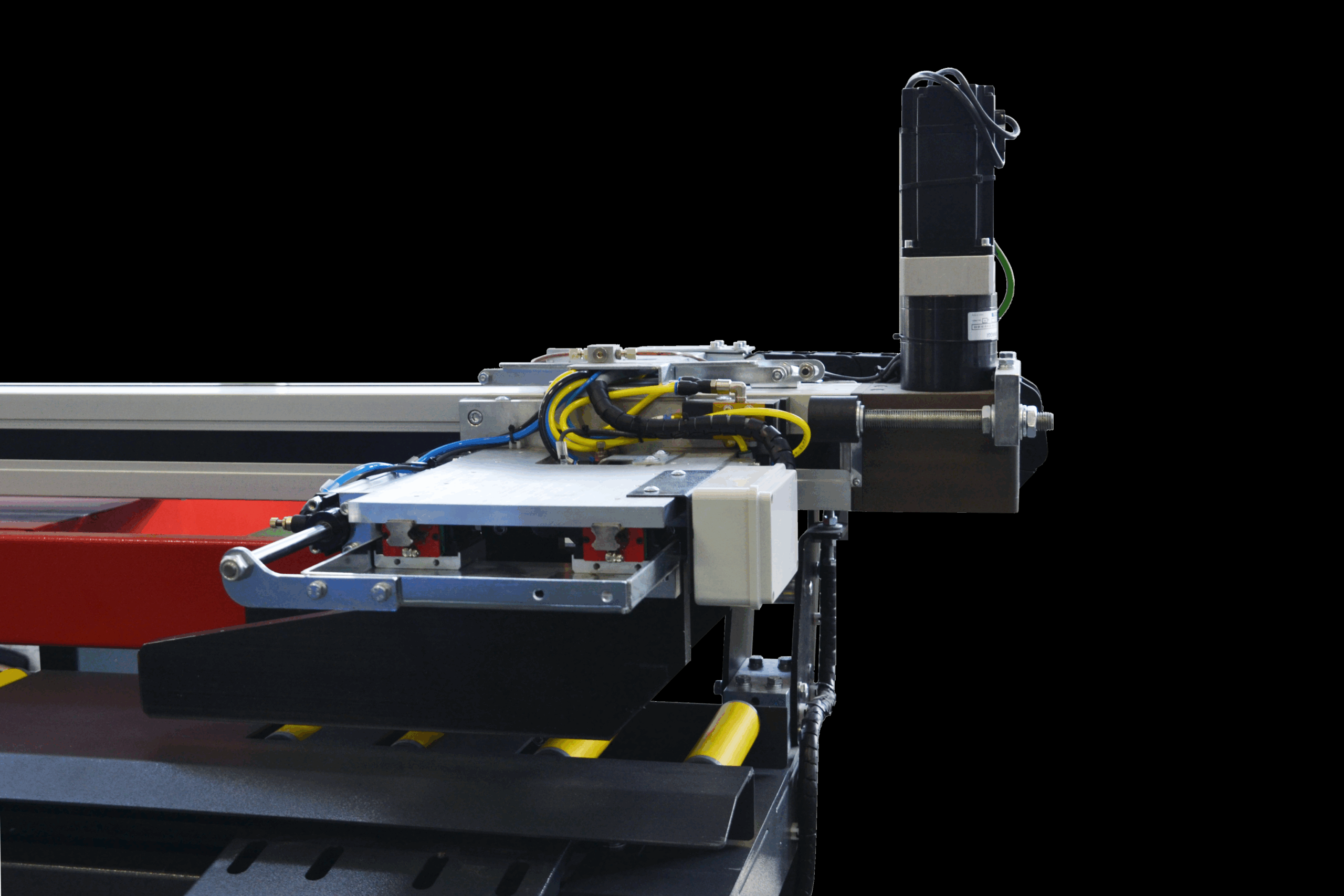

- Motorised unloading table with output on the opposite side
- Single drill for wall/through holes
- Vertical tools misaligned for angled holes
- Tool with a revolver for triple hole handle
- Hinge hole tool
- Extension length up to 6,000 mm, height up to 180 mm.
Advanced technology and automation

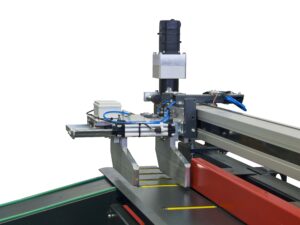

ASG-E integrates an intelligent control system through proprietary software, allowing the operator to manage every parameter intuitively and securely. The positioning of the profiles is ensured by prismatic guides with centesimal magnetic reading.
The entire line is compatible with Industry 4.0 and equipped for remote assistance and IoT connections.
