005NV
Vertical Shuttle with Rotation for Smart Window Logistics
Precision and versatility for integrated handling
Perfect if:
- Optimise the flow between assembly, glazing, and storage.
- Managing complex frame rotations in confined spaces
- Serve mirrored lines or parallel systems
- Minimise manual operations between each phase.
- Working safely even with large doors
- Adapting logistics to different production formats
Request the technical brochure now or speak with an expert.
Precision and versatility for integrated handling
The 005NV is the most comprehensive Graf Synergy shuttle for the automated handling of doors, frames, and finished fixtures. Thanks to its rotating system, it can rotate pieces by ±180°, adapting them to the orientation required by different production stages, optimising workflows and reducing manual handling.
Made of painted steel, with an 8° inclined structure for stable support, it combines rapid translation (up to 2 m/s) with high precision (0.5 mm in translation and 0.1° in rotation).
5 reasons to choose 005NV
- Automatic rotation ±180°. A servo-assisted system for changing the orientation of frames with exceptional precision and speed.

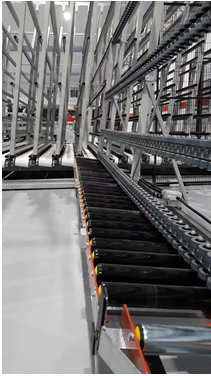

- Maximum fluidity in transitions. Thanks to side rollers, caster wheels, and a motorised belt with an inverter, every transfer occurs seamlessly without interruptions or misalignments.
- High mission speed. Average complete cycle in 45 seconds, optimised for high-intensity production lines.
- Integrated safety for every situation. Front anti-fall protections and an inclined structure ensure stability even in the event of a sudden stop.
- Complete layout flexibility. Supports mirrored configurations and is available in an enlarged version up to 4,000 x 3,200 mm.
Product Details
005NV is the ideal solution for the transfer and automatic rotation of panels between different production stations.
Dimensions
Length: 1,900 mm
Width: 3,600 mm
Height: 3,000 mm
Weight: 950 Kg
Performance
Tempo ciclo medio (carico + trasporto + scarico): 45 sec*
Velocità di traslazione: fino a 2 m/sec
Operatori richiesti: 1
Rotazione elementi: ±180
(*dipende dalla lunghezza della linea)
power supply and consumption
Installed power: 10 kW
Voltage: 400 V
Air consumption per cycle: 30 NI/min
Operating pressure: 7 bar
Manageable profiles (frame sizes)
Maximum length: 3,200 mm
Maximum width: 2,800 mm
Maximum thickness: 130 mm
Supported features and processes
- Loading/unloading on roller conveyors or powered warehouses
- Automatic rotation ±180° on the vertical axis
- Smooth transition between different orientations
- Lateral centring using rollers
- Translation on tracks using high-capacity wheels
Optional features and available configurations
Configurable to suit any layout requirement, the 005NV can be equipped with:
- Pinion system for drive transmission to warehouse conveyors
- Control panel handling straps
- Enhanced version 005NV40 (4000 x 3200 mm)
These options extend its use to systems with high volumes or non-standard formats.
Technology and Automation
Equipped with a high-precision brushless motor for translation and a servo-assisted rotation system, the 005NV integrates seamlessly with Industry 4.0 systems. The conveyor belt with an inverter allows for dynamic adjustments, while integration with management software and supervisory systems enables full traceability and centralised logistics management.
Contact us to find out if the 005NV is the right solution for your production.
