002NV
Vertical Lift Shuttle for Automated Assembly Lines
Move with precision, stand tall with confidence.
Perfect if:
- Automate the flow between welding, assembly, and tool installation.
- Speed up the handling process while reducing the risk of errors or damage.
- Manage vertical and horizontal transitions with a single solution.
- Operate safely even in the event of sudden stops.
Request the technical brochure now or speak with an expert.
Move with precision, stand tall with confidence.
The 002NV from Graf Synergy is an autonomous shuttle designed to optimise the loading and unloading of welded frames between different stations on the production line. With its ability to precisely orient elements from horizontal to vertical (and vice versa), it eliminates interruptions and manual handling, thereby increasing efficiency and safety.
Compact yet powerful, the 002NV operates at translation speeds of up to 2 m/s and millimetre tolerances, seamlessly integrating into automated systems even in tight spaces.
5 reasons to choose 002NV
- Precise and Automatic Verticalisation. Servo-assisted system with brushless technology that adjusts the frame from 0 to 92° (optional 98°) with an accuracy of 0.1°.
- Fast and smooth translation. Movement up to 2 m/sec with a repeatability of 0.5 mm. The belt and brush contact surface ensures continuous sliding.
- Integrated Safety. Active anti-fall front protections even in the event of an emergency stop. Side rollers for centring during horizontal passages.
- Total integration. Manages incoming items from horizontal tables or vertical conveyors. Compatible with automated warehouses and sorting logic.
- Ideal for any layout. Compact, sturdy, and oven-painted structure. Perfect for custom lines and modular logistics systems.
Product Details

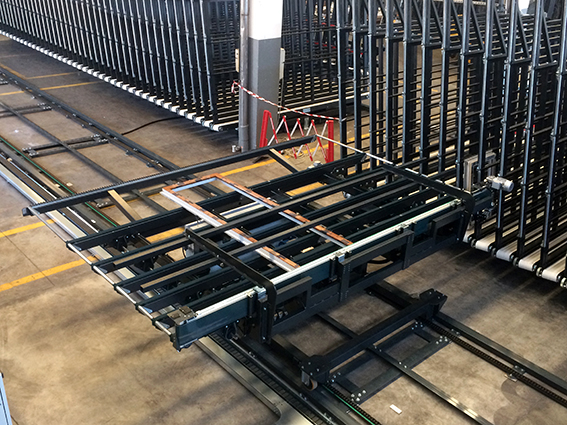

The 002NV shuttle is designed for the automatic transfer of welded frames between production stations with orientation changes. Thanks to its polyurethane belt structure, side rollers, and conveyor belt at the base, it ensures:
Dimensions
Length: 3,400 mm
Width: 3,500 mm
Height: 3,300 mm
Weight: 1.300 Kg
Performance
Average cycle time (loading + transport + unloading): 50 sec*
Translation Speed: up to 2 m/s
Operators required: 1
power supply and Consumption
Installed power: 12 kW
Voltage: 400 V
Air consumption per cycle: 30 NI/min
Operating pressure: 7 bar
Manageable profiles (frame sizes)
Maximum length: 2,800 mm
Maximum width: 1,400 mm
Maximum thickness: 130 mm
Supported features and processes
- Loading and unloading on tables or roller conveyors
- Transfer between horizontal and vertical
- Controlled push towards backrests or storage areas
- Alignment and centring of frames
- Smooth management of mixed flows
Optional features and available configurations
The 002NV is highly customizable based on production layout and handling needs. Among the options available:
- Vertical adjustment up to 98° (instead of 92°)
- Assisted handling hook for the control panel
- Gravity-based extraction system for warehouses
- Rack and pinion system for conveyor belt transmission in the warehouse
These solutions make it adaptable to complex contexts with FIFO logic, buffering, or integration with existing systems.
Technology and Automation
Equipped with high-precision brushless motors and an inverter for dynamic speed control, the 002NV shuttle integrates seamlessly into Industry 4.0 automated systems. Management can be connected to supervisory software and ERP systems for frame traceability and synchronisation with other stages of the line. Its modular architecture allows for future upgrades and on-demand customisations.
Contact us to find out if the 002NV is the right solution for your production.
