001TN
Automatic Vertical Stacking Machine for Welding and Assembly Lines
Simplify the handling, improve the flow
Perfect if:
- Automatically verticalise the welded frames after welding.
- Connecting non-parallel lines within production
- Reduce the physical effort of operators
- Optimise the cycle time of subsequent machines.
- Working safely and with a continuous flow
- Easily adapt the bench to existing or compact lines.
Request the technical brochure now or speak with an expert.
Simplify handling, enhance the flow

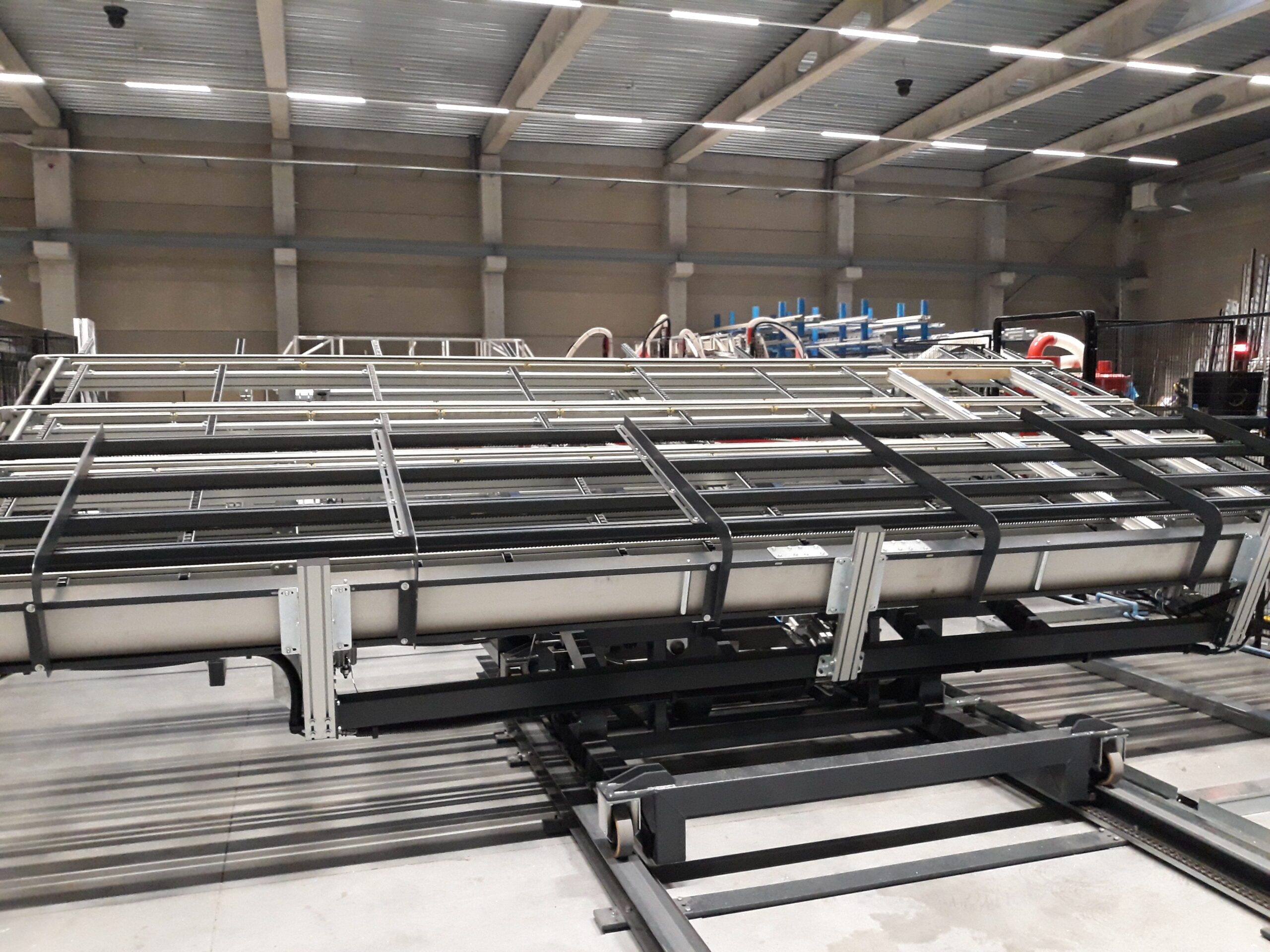

The verticalising bench 001TN is Graf Synergy’s solution for optimising the vertical arrangement of welded frames within the production line. It can be positioned both downstream of the welding machine and as a junction point between non-parallel lines, allowing for the automatic and safe tilting of elements from 0 to 80°, minimising the need for manual intervention.
Its compact structure and contact surface designed to prevent blockages during movement make it ideal for production environments with limited space or customised layouts.
5 reasons to choose 001TN
- Controlled and precise tilting. Motorised brushless or pneumatic system that allows for automatic verticalisation from 0 to 80°.
- Low Friction Surface. Polyurethane belts with thermally welded guiding profiles and diagonal brushes ensure smooth movement of the panels.
- Compact and modular structure. Made from welded and painted steel tubing, it is sturdy yet compatible with both linear and complex layouts.
- Maximum safety at every stage. Equipped with vertical straps, side rollers, and guards that keep the fixture stable even during inversion.
- Customisable for every need. Available in five versions up to 6,000 mm in square length to fit any production format.
Product Details
001TN enables the automatic transfer and verticalisation of frames, simplifying internal logistics between welding, storage, and assembly.
Dimensions
Length: 3,500 mm
Width: 3,400 mm
Height: 1,000 mm
Weight: 1.600 Kg
Performance
Cycle time: depends on the connected system
Operators required: 1
Automatic tilt from 0 to 80°
power supply and Consumption
Installed power: 10 kW
Voltage: 400 V
Air consumption per cycle: 30 NI/min
Operating pressure: 7 bar
Manageable profiles (frame sizes)
Maximum length: 2,800 mm
Maximum width: 1,400 mm
Max thickness: 130 mm
Supported features and processes
- Polyurethane straps with heat-sealed guide
- Anti-jam diagonal brushes
- Horizontal conveyor with inverter
- Floating bed with crazy wheels/brushes
- Side vertical rollers and support belts
Optional features and available configurations
No optional extras are available. However, it is offered in various sizes to accommodate larger frames.
- 001TN40: 2.800 x 4.000 mm
- 001TN32: 2.800 x 3.200 mm
- 001TN34: 4.000 x 3.200 mm
- 001TN60: 2.800 x 6.000 mm
- 001TN50: 2.800 x 5.000 mm
Technology and Automation
001TN is powered by high-efficiency brushless motors or a pneumatic system, combining reliability and ease of operation. The inverter control on the conveyor belt allows for dynamic adjustments to the handling speed. Integratable with Industry 4.0 systems, it can be connected to management software for cycle synchronisation and flow optimisation.
Contact us to find out if the 001TN is the right solution for your production.
