001BN
Folding Assembly Bench for Door and Frame
Ergonomics and versatility for every stage of assembly
Perfect if:
- Simplifying the manual assembly of door leaves and frames.
- Operate in both vertical and horizontal positions with maximum ergonomics.
- Easily integrate manual workstations into automated lines.
- Reduce operator fatigue during the assembly phases.
- Managing operations on large frames
- Having a robust yet versatile structure
Request the technical brochure now or speak with an expert.
Ergonomics and versatility for every stage of assembly
The 001BN workbench is designed to facilitate manual operations for matching doors to frames and assembling hardware in both vertical and horizontal positions. It is ideal as a connection point between horizontal automated lines and vertical manual workstations, ensuring stability, safety, and ease of use.
The electro-welded steel structure features a pneumatic tilting system and a support surface with brushes, while the retractable lower roller conveyor facilitates movement during the working phase.
5 reasons to choose 001BN
- Easy and Safe Pneumatic Tilting. The work surface tilts from horizontal to vertical with pneumatic control, enhancing accessibility.
- Maximum operational ergonomics. The combination of brushes and retractable rollers makes every assembly stage smoother.
- Light yet sturdy structure. Welded steel construction, optimised for stability and ease of handling.

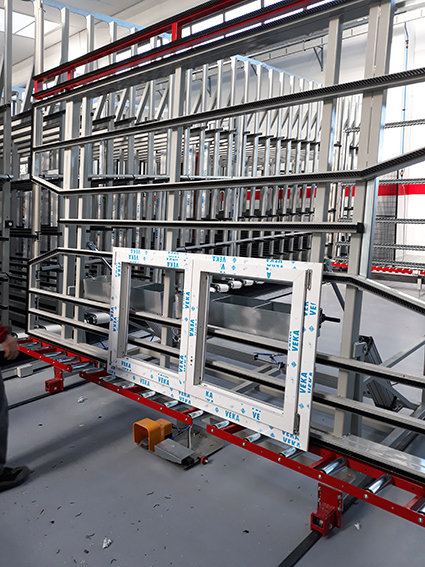

- Adaptable to any layout. Available with variants featuring guide wheels and pneumatic brakes for movement on floor tracks.
- Cost-effective and functional solution. Easy to use, requires no electrical power. Minimal air consumption.
Product Details
The 001BN workbench is designed to facilitate manual operations for the assembly of door leaves and frames, as well as the installation of hardware in both vertical and horizontal positions. It is ideal as a connecting point between horizontal automatic lines and vertical manual workstations, ensuring stability, safety, and ease of use.
The electro-welded steel structure features a pneumatic tilting system and a support surface with brushes, while the retractable lower roller conveyor facilitates movement during the working phase.
Dimensions
Length: 3,500 mm
Width: 2,100 mm
Height: 2,380 / 2,500 mm*
Weight: 240 Kg
(height adjustable upon request)
Performance
Operators required: 1
Operations: manual
Flipping: tyre
power supply and Consumption
Installed power:
Tension: unexpected
Air consumption per cycle: 50 NI/min
Operating pressure: 7 bar
Manageable profiles (frame sizes)
Maximum length: 3,500 mm
Maximum width: 2,100 mm
Supported features and processes
- Fitting hardware on the door leaf and frame
- Pairing elements in vertical and horizontal positions
- Integration between automatic and manual lines
- Support platform with brushes
- Retractable support roller
- Pneumatic tipping system
Optional features and available configurations
The counter can be customised with:
- Accessory drawer
- Pneumatically collapsible lower roller conveyor
- Structure with wheels and pneumatic brake (operable by pedal or manually)
These solutions allow for the optimisation of the workspace and the adaptation of the bench to dynamic layouts.
TECHNOLOGY AND AUTOMATION
Essential yet functional, the 001BN operates with pneumatic actuators without the need for electrical power. Perfect for integration in manual workstations, it can be easily moved or repositioned thanks to its mobile versions, making it a flexible ally in finishing and quality control stages.
Contact us to find out if the 001BN is the right solution for your production.
